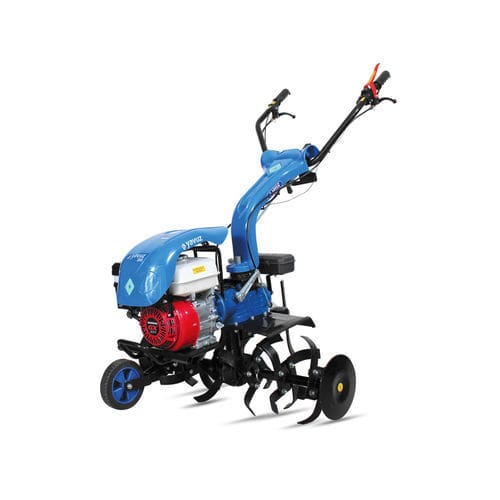

Gasoline engine walk-behind tiller 200 Honda GX200

Overview
Power tiller Yavuz 200 Honda GX200 for soil preparation and cultivation. Fitted with a Honda GX200 4-stroke gasoline engine, manual transmission with 2 forward and 1 reverse speeds and an adjustable tiller width of 60–90 cm. Includes an engine stop safety device for immediate shutdown.

Product details (from technical table)
Serial No: Yavuz 200 Honda GX200
Transmission and Diff: Manual, 2 forward and 1 reverse speed
Gearbox: Conical and bevel gear box
Tiller / Working Width: Adjustable 60-90 cm (with protective side disks)
Safety Device: Motor stop shuts down the engine immediately
Power take-off: Upper: Fixed speed; Lower: Synchronized with gearbox
Clutch: Conical dry type
Wheels: Optional (400x8)
Engine: Honda GX200
Engine Type: 4-stroke gasoline engine
Starting System: Ropc
Cylinder Volume (cm3): 196 (68.0 x 54.0)
Rated Power: 6.5 HP / 3600 rpm
Rated Torque: 1.26 Kg-M (12.4 N-m) @ 2500 rpm
Engine oil capacity (ltr): 0.6 l
Fuel tank capacity (ltr): 3.6 l
Fuel Type: Gasoline
Air Filter: Semi-dry, oil bath, double component
Cooling System: Air
Ignition System: Transistor ignition
Weight: 70 kg

Technical specifications

• Serial No: Yavuz 200 Honda GX200
• Transmission: Manual, 2 forward and 1 reverse speed
• Gearbox: Conical and bevel gear box
• Tiller working width: Adjustable 60–90 cm (with protective side disks)
• Safety device: Motor stop for immediate engine shutdown
• Power take-off: Upper fixed speed; Lower synchronized with gearbox
• Clutch: Conical dry type
• Wheels: Optional (400x8)
• Engine model: Honda GX200
• Engine type: 4-stroke gasoline engine
• Starting system: Ropc
• Cylinder volume: 196 cm3 (68.0 x 54.0)
• Rated power: 6.5 HP @ 3600 rpm
• Rated torque: 1.26 Kg-M (12.4 N-m) @ 2500 rpm
• Engine oil capacity: 0.6 l
• Fuel tank capacity: 3.6 l
• Fuel type: Gasoline
• Air filter: Semi-dry, oil-bath, double component
• Cooling system: Air
• Ignition system: Transistor ignition
• Weight: 70 kg
