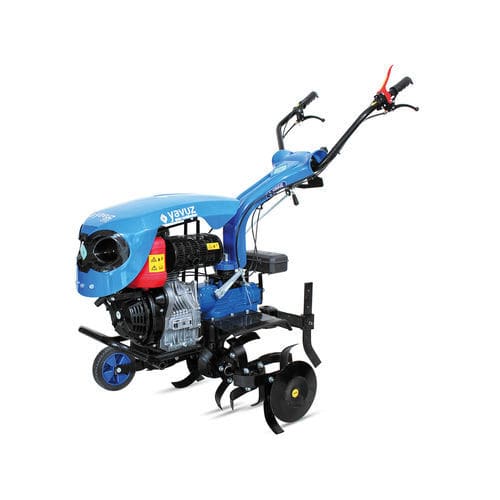

Diesel walk-behind tiller 300 AD320

Product overview
Compact walk-behind tiller Yavuz 300 AD320 designed for soil preparation and light field operations. Equipped with a single-cylinder Antor AD320 diesel engine and a 3 forward / 1 reverse gearbox for versatile maneuvering.

Key features

• Transmission: 3 forward and 1 reverse speeds with conical and bevel gear transmission
• Tiller working width: adjustable 60–90 cm (with protective side disks)
• Engine: Antor AD320, 4-stroke direct injection, single-cylinder, rope start
• Power: 7 HP at 3600 rpm; displacement 315 cm3; rated torque 13.8 Nm at 2800 rpm
• Safety: Emergency engine stop system
• PTO: Two upper and two lower power take-offs
• Brake: Dry type conical brake lining
• Wheels (optional): 400x8 / 450x10
• Cooling: Air-pressured system; air-oil bath filter
• Weight: 85 kg; fuel tank: 5 L; engine oil capacity: 1.2 L

Technical specifications

• Model / Serial No: Yavuz 300 AD320
• Transmission and differential: 3 forward and 1 reverse
• Gear type: Conical and bevel gear transmission
• Tiller width: Adjustable 60–90 cm (with protective side disks)
• Engine model: Antor AD320 — 4-stroke direct injection, single-cylinder
• Starting: Rope
• Cylinder volume: 315 cm3
• Rated power: 7 HP / 3600 rpm
• Rated torque: 13.8 @ 2800 rpm
• Engine oil capacity: 1.2 L
• Fuel tank capacity: 5 L — Diesel
• Air filter: Oil-bath type
• Cooling system: Air-pressured
• Brake: Dry type conical brake lining
• Optional wheels: 400x8 / 450x10
• Weight: 85 kg

Applications

• Soil preparation for small plots, gardens and allotments
• Light tillage and seedbed preparation on small farms
• Horticulture, orchards, vineyards and greenhouse work
• Transport and PTO-driven attachments for varied tasks

Options and accessories

• Optional wheel sizes: 400x8 and 450x10
• Protective side disks and tiller attachments
• PTO-driven implements compatible with upper and lower PTOs
• Spare parts and maintenance kits available
