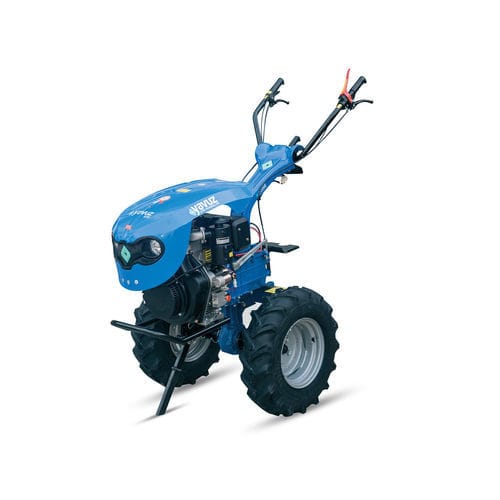

Diesel walk-behind tiller 510 / 186 FE

Overview
Two-wheel walk-behind tractor Yavuz 510 / 186 FE with 3 forward and 1 reverse gear. Designed for small-scale tillage, cultivation and transport tasks on farms and orchards.

Technical specifications

• Serial No: Yavuz 510 / 186 FE
• Gearbox: 3 forward and 1 reverse speed
• Transmission: Conical and bevel gear transmission
• Tiller / Working width: Adjustable 60–90 cm (with protective side disks)
• Safety system: Emergency engine stop system
• PTO: Two upper and two lower power take-offs
• Clutch: Dry type conical brake lining
• Wheels: 650 x 80 x 12
• Weight: 150 kg

Engine

• Model: Yavuz 186 FE
• Type: 4-stroke with direct injection, single-cylinder
• Cylinder volume: 400 cm3
• Power: 10 HP / 3600 rpm
• Effective torque: 32.8 Nm @ 1800 rpm
• Starting system: Rope / recoil / electric start
• Engine oil capacity: 1.65 L
• Fuel tank capacity: 5.5 L
• Fuel type: Diesel
• Air filter: Oil-bath type
• Cooling: Air pressured

Transmission & drive

• Conical and bevel gear transmission for power transfer
• Multiple PTO outputs for implements
• Dry-type conical clutch for engagement
• Wheel specification: 650x80x12

Dimensions & weight

• Adjustable tiller width: 60–90 cm
• Overall weight: 150 kg

Safety & maintenance

• Emergency engine stop system for operator safety
• Oil-bath air filter for dust-prone environments
• Accessible service points for routine maintenance

Applications
Suitable for ploughing, tilling, seedbed preparation and accessory-driven tasks on small farms, vegetable plots and orchards. Ideal for contractors and agricultural businesses requiring a compact, multi-purpose two-wheel tractor.
