Vertical mixing wagon Galactica

stationarywith weighing systemelectric motor

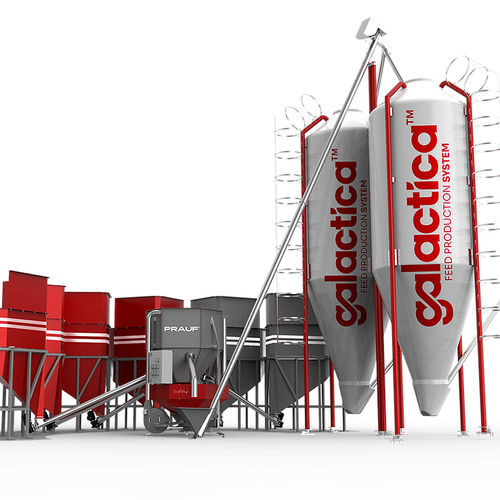

Galactica is a compact, automated feed preparation system for dairy farms designed to produce Total Mixed Ration (TMR) with low energy consumption and automated PLC control. Intended for farms with 100–600 dairy animals; batch size 1000 kg and up to 12 tonnes of feed per 8‑hour shift.

Key features and advantages

• Energy efficiency: reported average consumption 7.45 kWh per tonne of feed.
• Compact layout: full system (including 6 raw material bunkers) fits within ≈ 8.5 × 13 m, reducing building and roof costs.
• Automation and usability: fully automatic PLC control with touchscreen and dedicated software for simplified operation.
• Raw material flexibility: processes corn, wheat, barley, soy and similar feedstocks.
• Designed capacity: 1000 kg batches, capable of producing up to 12 t in an 8‑hour shift for medium‑to‑large dairy operations.
• Safety & protection: safety interlocks (breaker cover switch), magnets for metal separation, emergency stop buttons.
• 360° product visualization: 360‑degree animation available for inspection.

Functional modules

• Crushing unit: crushing blades (42 double‑sided steel blades) and selectable sieve hole diameters (3 / 4 / 5 / 6 mm) for particle size control.
• Premix chamber: accurate premixing of additives (capacity 150 kg).
• Mixing unit: vertical spiral (free‑fall) mixing for homogeneous TMR production (mixing chamber capacity 1000 kg).
• Scales: integrated weighing system (Tounak/S Type Easy‑2X) for precise dosing.

Safety & quality

• Cleanable magnets for metal separation.
• Emergency stop buttons and multiple safety interlocks (e.g., breaker‑cover switch).
• Electrostatic powder coating for durable finish and corrosion protection.

Documents & media

• English product brochure available (PDF).

Technical specifications

• Model / trade name: Galactica
• Total power: inconsistent values cited on page — 12 kW (technical table) and 21 kW (descriptive text).
• Feed preparation capacity: 1000 kg per batch; reported capability up to 12 t in an 8‑hour shift (covers up to 600 dairy animals).
• Mixing chamber capacity: 1000 kg.
• Breakable (crushing) material chamber capacity: 450 kg.
• Premix chamber capacity: 150 kg.
• Crushing unit motor power: 7.5 kW (10 HP).
• Crushing blades: 42 double‑sided steel blades.
• Sieve hole diameters (crushing output): 3 / 4 / 5 / 6 mm.
• Mixing unit motor power: 4 kW (5.5 HP); mixing type: vertical spiral, free‑fall.
• Paint: electrostatic powder coating.
• Dimensions (H × W × L): 3025 × 2100 × 1900 mm.
• Weight: 800 kg.
• Scale type: Tounak/S Type Easy‑2X.
• Energy performance: reported average 7.45 kWh per tonne of feed.
• Suitable farm size: 100–600 dairy animals.
• Installation footprint: system with bunkers arranged within ≈ 8.5 × 13 m.
