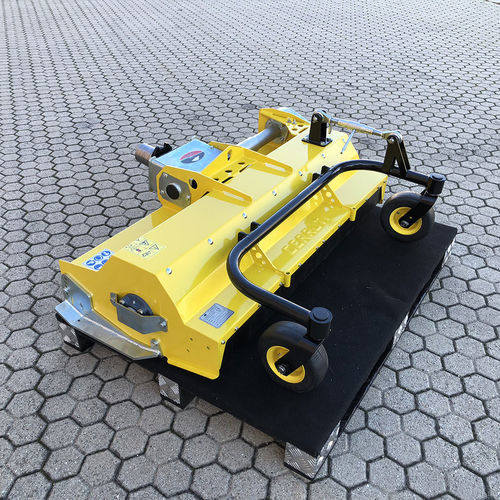

Front-mount mower TR-HD SERIESflail32 blades40 blades
Add to favorites
Compare this product
Characteristics
- Mounting
- front-mount
- Technology
- flail
- Number of blades
- 32 blades, 40 blades, 48 blades
- Number of discs
- 16 discs, 20 discs, 24 discs
- Other characteristic
- PTO-driven, grass, heavy-duty
- Working width
800 mm, 1,000 mm, 1,200 mm
(31.5 in, 39.37 in, 47.24 in)- Power required
Min.: 14 ch
(14 hp)Max.: 30 ch
(30 hp)- PTO speed
800 rpm, 1,000 rpm
(5,026.5 rad.min-1, 6,283.2 rad.min-1)- Weight
131 kg, 147 kg, 160 kg
(288.8 lb, 324.1 lb, 352.7 lb)
Description
Adaptable to any kind of 2 wheel tractor (front type)
Grass cutting height adjustment with rear support roller or (on request) front wheels
Rotor with Y blades or (on request) with set of hammers.
Flanging attachment is articulated in order to adapt to any height of PTO.
Angular gear box with anti-dragging free wheel
ACCESSORIES ON REQUEST
Adjustable front pivoting wheels without supporting roller
Adjustable front pivoting wheels with supporting roller
Set of hammers instead of Y blades
Automatic rotor brake according to EN 12733
One pair of support sledges
STANDARD EQUIPMENT
Working Height:154 mm
Rotor Diameter:300 mm
Roller Diameter:102 mm
Front wheel diameter (on request):205 mm
Max/Min height of 2 wheel tractor PTO from the ground:250/400 mm
Maximum height of Y blades with roller from the ground:65 mm
