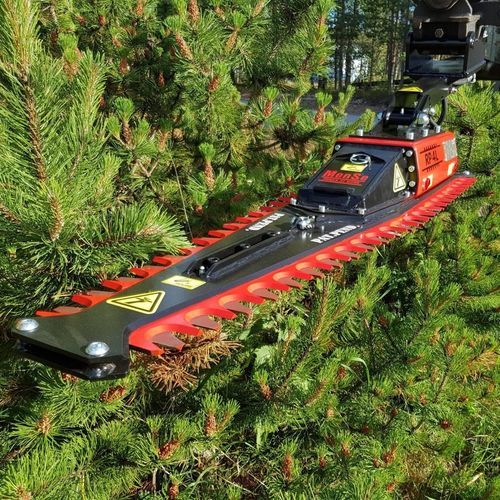

Excavator mounted brush cutter RP series

blade

Short description
MenSe Excavator Brush Cutters (RP series) are hydraulic attachments with two reciprocating blades for controlled cutting and sawing of vegetation. They are designed for mounting on a wide range of excavators via customer-specified adapters and quick couplers.

Overview
The RP series (models RP4L, RP6L, RP8L, RP10L) uses two blades moving in a scissoring motion that combine cutting and sawing action. Blade material is 500 HB abrasion-resistant steel to extend service life and reduce sharpening frequency. The design minimizes thrown debris, enabling safer operation near roads, railways and power lines.

Applications and benefits
Typical applications include hedgerow trimming, tree and shrub maintenance, clearing vegetation along power lines, railways and roadsides, and maintenance of green areas and sapling stands. The cutters enable controlled trimming of branches adjacent to power lines while reducing the risk of debris contacting lines. The roughened cut surface slows re-sprouting.

Construction and options
Blades are manufactured from 500 HB abrasion-resistant steel and can be re-sharpened with a hand-held grinder if required. MenSe units are supplied with an adapter selected by the customer for the machine quick coupler. Optional extension booms increase reach behind obstacles and assist machine manoeuvring. Booms are available for common quick coupler types.

Specifications

• Models and key metrics: RP4L – Weight: 90 kg; Working width: 130 cm; Max cutting diameter (single cut): 4 cm; Max cutting diameter (sawing): 5 cm; Required oil flow: 20 l/min; Working pressure: 200 bar; Suitable base machine: from 2 tonnes
• RP6L – Weight: 160 kg; Working width: 150 cm; Max cutting diameter (single cut): 6 cm; Max cutting diameter (sawing): 10 cm; Required oil flow: 35–45 l/min; Working pressure: 200 bar; Suitable base machine: 5–13 tonnes
• RP8L – Weight: 305 kg; Working width: 190 cm; Max cutting diameter (single cut): 8 cm; Max cutting diameter (sawing): 15 cm; Required oil flow: 80–100 l/min; Working pressure: 200 bar; Suitable base machine: 8–15 tonnes
• RP10L – Weight: 520 kg; Working width: 240 cm; Max cutting diameter (single cut): 10 cm; Max cutting diameter (sawing): 15 cm; Required oil flow: 130–150 l/min; Working pressure: 200 bar; Suitable base machine: 15–20 tonnes

Technical characteristics

• Product family: MenSe RP series excavator brush cutters (RP4L, RP6L, RP8L, RP10L)
• Cutting method: two reciprocating blades in scissoring motion (cutting and sawing)
• Blade material: 500 HB abrasion-resistant steel
• Typical uses: hedgerow trimming, tree and shrub maintenance, clearing vegetation along power lines, railways and roadsides
• Safety: cutting action reduces thrown debris and risk to traffic and lines
• Options: customer-specified adapter; optional extension boom for increased reach; booms for common quick couplers
• Working pressure (all models): 200 bar
