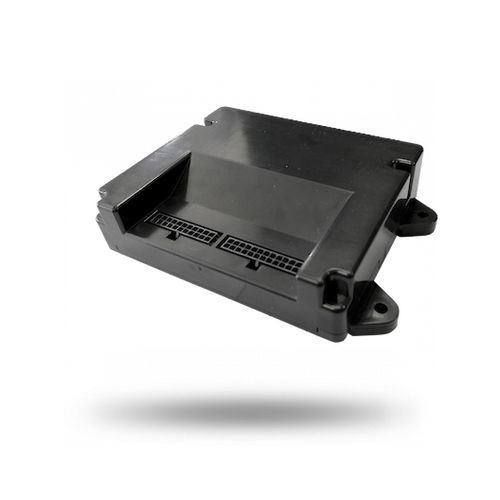

CAN-Bus electronic control unit CCM

Applications of the control module: To control the HVAC/ Thermal Management systems with fully customisable strategies and algorithms; To control customer specific systems, upon request; To control loads in high/low side up to 500mA, with diagnostics on each output; To communicate via CAN-Bus (J1939 full stack available upon request, other protocols upon request with configurable baud rate, UDS supported upon request, Network Management supported upon request, sleep function available/ wake up via CAN capable); To communicate via LIN, master or slave adaptable; To connect multiple ECUs to allow input/output extensions upon request; To generate multiple PWM signals to drive specific equipment as electronic blower controller, electric compressors, condenser fans, electric heaters etc. Standard inputs/outputs: 12 Digital outputs with diagnostics for underload/overload 12 Analog inputs 10bit 3 Digital inputs 2 Linear outputs or PWM with Feedback, up to 3 capable 1 CAN BUS up to 1Mbit/s 1 LIN BUS Master or slave Inputs/outputs upon request: 1 additional CAN BUS 1 additional LIN BUS 3 additional digital inputs 1 additional PWM
