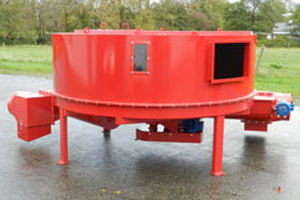

Complete machine with 2x outlet, prepared for 3 extra outlet.
Outlet distribution system inside the machine.
Straw is filled into the machine from a cormall scratcher, thus ensuring that any lumps inside the straw is ripped apart The center agitator is ensuring that material constant is flooded into the discharge augers on the bottom of the machine.Each discharge auger is individually feeding its own straw mill/process, and the speed of the auger is controlled by frequency inverter. A level sensor inside the machine ensures that the machine is not over filled.
Machine number 1041-200
Machines, guards etc. comes in a color type RAL 3001 red suitable for indoor, non corrosive environment - water and oil resistant -15 to + 60 degrees C, surface purified with alkaline degreaser, painted with a machine primer and here after coating paint.
Custom tariff number 84369900
Power consumption kW and starter
Agitator in center: 4 kW, 1400 rpm, DOL
Measures Ø2900 x H:1700
Weight 1080 Kg
DS/EN 60204-1:2006 Safety of Machinery - Electrical Equipment of Machines, DS/EN ISO 13850 of January 29th 2007 emergency stop, DS/EN ISO 13849-1 safety-related parts of control systems, DS/EN 60204-1: 2006, cable installation method E
RISK ASSESMENT Machine
The machine cannot be used as a “stand alone” machine and is
therefore not delivered with a CE marking only conformity declaration
EN/ISO 13849-1 Safety level – Plr: a
Safety level – Plr: a
As machine with automatic start mounted correctly with cormall
