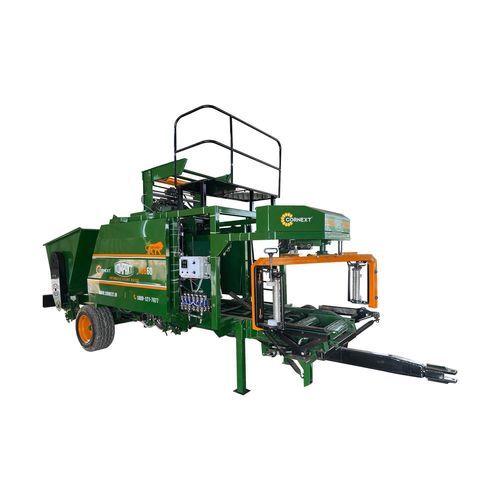

Cylindrical baler Kompakt ASB60

roundsilagewith bale wrapper

Description
The Kompakt ASB60 is a fully automated silage baler and wrapper engineered for commercial fodder production, large dairy farms and integrated feed operations. Designed for continuous, high-volume work, the unit combines PLC-based automation with a hydraulic compression and wrapping system to deliver consistent bale density and controlled wrapping parameters.

Key Features:

• High-speed bale output: Up to 60 bales per hour to increase throughput in high-demand operations.
• Programmable dual wrapping: Two-stage wrapping (internal and external) using UV-protected polyethylene or polypropylene film (15–25 µm), with programmable layer counts.
• Digital control panel: User-friendly 12V DC controller with alphanumeric display; programmable settings for bale count, wrap layers and target weight (60 kg). Optional manual override available.
• Elevated operator platform: Safe elevated position for improved visibility and monitoring during operation.
• Material handling system: 600 kg hopper and chain-driven conveyor with ~125 kg/min capacity for continuous feed into the compression chamber.
• Compression chamber: Automatic pressure control achieving compaction density of 940–980 kg/m³ for consistent bale quality.

Bale & Machine Specifications (summary):

• Bale size: Height 456 mm × Diameter 426 mm
• Bale weight: 60 kg (±10 kg depending on forage type and compaction)
• Wrapping film width: Internal 520 mm; External 250 mm (film thickness 15–25 µm)
• Machine dimensions: 6000 mm (L) × 2010 mm (W) × 2650 mm (H)
• Total weight: 3500 kg (operational, with fittings)
• Power source: Tractor PTO (35 BHP @ 540 RPM) OR 20 HP electric motor, 3-phase, 1440 rpm, 415 V
• Controller supply: 12V DC
• Transport: Towing hooks for field movement

Hydraulic System:

• Hydraulic pump capacity: 16 L (single pump)
• Hydraulic motor: Dedicated motor for external wrapping
• Hydraulic distributor: 7 double-action 12V distributors
• Oil tank capacity: 40 L

Product Specification Table
Parameter — Specification
Output — 60 kg bales (±10 kg depending on moisture, quality and material)
Compaction density — 940–980 kg/m³
Operating system — Hydraulic pump and motor system integrated with PLC-based automation
Recommended power sources — Tractor PTO (35 BHP @ 540 RPM) or 20 HP electric motor, 3-phase, 1440 rpm, 415 V
Machine weight (dry) — 3100 kg

Technical specifications:

• Model: Kompakt ASB60
• Designed output: 60 kg bales (±10 kg depending on moisture and material)
• Bales per hour: up to 60
• Compaction density: 940–980 kg/m³
• Compression chamber: automatic pressure control
• Operating system: Hydraulic pump & motor integrated with PLC-based automation
• Recommended power: Tractor PTO (35 BHP @ 540 RPM) or 20 HP electric motor, 3-phase, 1440 rpm, 415 V
• Controller supply: 12V DC (alternator)
• Hopper capacity: 600 kg (~10–11 bales per load)
• Conveyor: chain-driven, ~125 kg/min
• Bale dimensions: Height 456 mm × Diameter 426 mm
• Wrapping film widths: internal 520 mm; external 250 mm (15–25 µm)
• Machine dimensions (L × W × H): 6000 × 2010 × 2650 mm
• Machine weight (dry): 3100 kg
• Total weight (operational): 3500 kg
• Hydraulic pump capacity: 16 L (single pump)
• Hydraulic distributor: 7 double-action 12V distributors
• Hydraulic motor: dedicated motor for external wrapping
• Oil tank capacity: 40 L
• Transport: towing hooks provided for field movement
