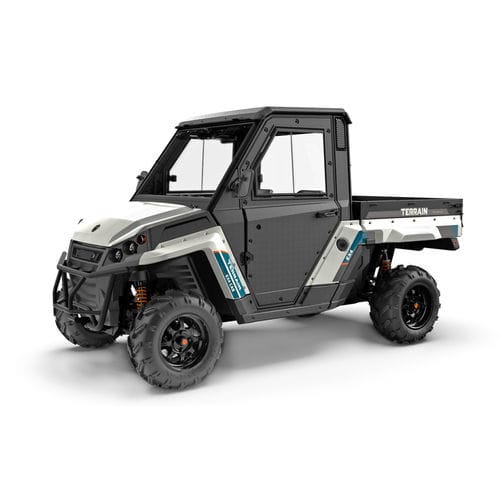

4x4 quad bike TERRAIN EX4

electric2-personwith dump bed

An electric UTV capable of successfully tackling the toughest workdays thanks to its OFF-ROAD capabilities. The new TERRAIN EX4 offers high load capacity, great robustness and durability, lower maintenance cost, and precise power for your every need on the job. TECHNICAL SPECIFICATIONS: DIMENSIONS .L x W x H (mm) : 3414 x 1656 x 1973 .Wheelbase: 2238 mm .Ground clearance: 309 mm .Dry weight: 897 kg .Towing capacity: In Low: 755 kg. In High: 479 kg .Total payload capacity: 620 kg BATTERY .Battery: Lithium Ion 15 Kwh .Alternator: 37 A .Battery charger: 3 Kw (AC) .Autonomy: RANGE mode: 100 km (depending on use). POWER mode: depending on use ENGINE .Engine type: AC induction at 48V. .Torque: 150 Nm (maximum) .Transmission: F-N-R lever. Selector button for H-L .Transmission mode: 4X2 or 4X4 with lockable rear differential .Maximum speed: In Low: 25 km/h. In High: 40 km/h CHASSIS .Front tyre: 26×9. R14 .Rear tyre: 26×11. R14 .Rims: 14″ steel .Front brakes: Double piston hydraulic. .Rear brakes: Hydraulic disc brakes .Parking brake: Yes .Suspensions front and rear: Both with independent double wishbones. 287 mm travel .Protections: Underbody guards. .Hitch: Front hitch adapter and 2″ rear ball. .Lights: LED (rear) .Turning radius: 4.42 m CARGO BOX .Dimensions L x W x H: 1340 x 1202 x 300 mm .Material: Steel .Load capacity: 300 kg HOMOLOGATION .Homologation: T1a SPACIOUS AND COMFORTABLE CABIN The ample height and width of the cabin, together with the layout of the dashboard, allow a quick and extensive view of the exterior.
