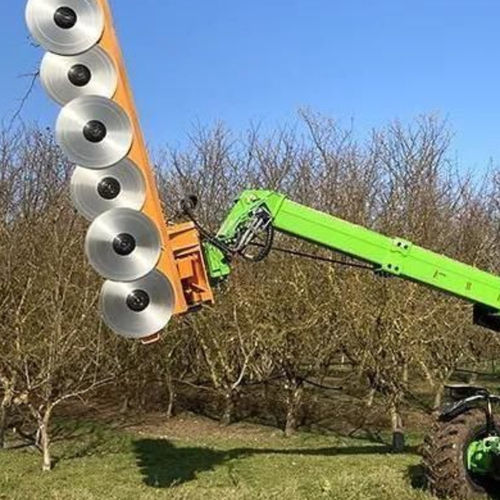

Hydraulic hedge trimmer Meteor T90D series

tractor-mountedfor green spacesswivel

Overview Designed for telescopic handlers, the Meteor T90D enables pruning and hedge cutting at height in hard-to-reach areas thanks to its front-mounted configuration, swivelling cutting head and clear blade visibility from the cabin. Suited to farmers, pruning contractors and local authorities requiring precise, high-reach cutting.

Key features

• Front-mounted telescopic cutterbar for improved visibility from the cab.
• Fast cutting with saw blades (up to 220 mm cutting capacity depending on model).
• Interchangeable tools: saw blades or reinforced stamped plates for different maintenance tasks.
• Hydraulic tilt cylinder for vertical/horizontal cutting and folding.
• Lateral hydraulic offset: 1 m for working offset from obstacles.
• Hydraulic distributor equipped with a flow divider for synchronous operation.
• Universal mounting interface available as an option.
• Removable support provided for safe storage after work.
• Double-beam chassis designed for intensive use and heavy-duty conditions.
• 10-groove Poly-V belt transmission for reliable power transfer.
• Optional Bluetooth cabin control console for remote operation.

Applications Practical for hedgerow trimming, pruning, field-edge maintenance, topping and precision cutting on agricultural land, roadsides and windbreaks. Mounts on telescopic handlers to reach high or distant targets while maintaining operator visibility and control.

Technical specifications (table)
Model | Meteor T90D-3650 | Meteor T90D-4650 | Meteor T90D-5600 | Meteor T90D-6600
Pruner | 3650 | 4650 | 5600 | 6600
Number of blades/trays | 3 | 4 | 5 | 6
Diameter (mm) | 650 | 650 | 600 | 600
Cutting capacity (mm) - Plates | 25 | 25 | 25 | 25
Cutting capacity (mm) - Saw blades | 220 | 220 | 200 | 200
Length of stroke (m) | 1,57 | 2,05 | 2,47 | 2,91
Rotation speed (rpm) | 2500 | 2500 | 2000 | 2000
Machine weight (without attachment) (kg) | 535 | 575 | 220 | 265

Technical specifications

• Range: Meteor.
• Saw blade diameter (typical): 650 mm on some variants.
• Maximum cutting diameter with saw: up to 220 mm (depends on model and blade Ø).
• Cutting capacity with reinforced plates: 25 mm.
• Transmission: 10-groove Poly-V belt.
• Hydraulic functions: lateral offset 1 m; hydraulic tilt cylinder for horizontal cutting or folding; hydraulic distributor with flow divider.
• Control: in-cab console; optional Bluetooth remote control.
• Mounting: universal mounting interface available (optional).
• Support: removable storage support for transport and storage after the job.
• Chassis: double-beam chassis for heavy-duty / intensive work.
• Variants and stroke lengths: 1.57 m (T90D-3650), 2.05 m (T90D-4650), 2.47 m (T90D-5600), 2.91 m (T90D-6600).
• Rotation speed range: 2000–2500 rpm depending on model.
• Number of blades/trays varies by model: 3, 4, 5 or 6.
• Machine weight (without attachment) varies by model (see table).
