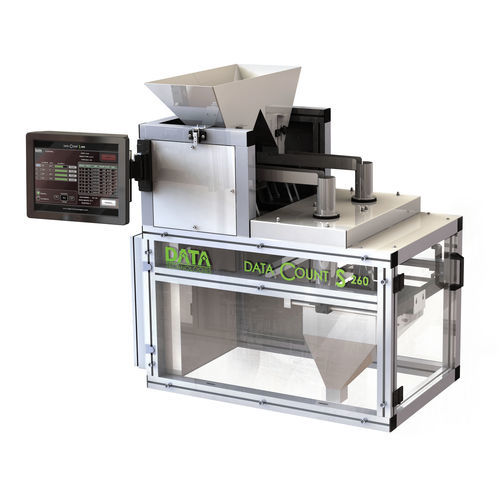

Seed counter with bagger S-260

automatic

The Multi-Channel Seed Counter S-260 is one of DATA’s integrative industrial seed counter series. Seed processing procedures can be cost-effectively upgraded by integrating this highly accurate seed counter with an existing packaging machine. The Multi-Channel Seed Counter S-260 can either replace weight filling or volumetric dosing systems or be integrated as an additional device that expands packaging capabilities with minimal investment. Following a simple protocol, DATA’s Multi-Channel Seed Counter S-260 can be easily integrated with existing or new packaging machines, resulting in a new modern counting and packaging system. FEATURES .Delivers 99.8%-100% accuracy .Two-head system .Counting diameter range between 0.5 mm and 25 mm .High throughput (up to 15 bags of 1,000 seeds per minute) .Precisely counts a pre-set number of seeds .User-friendly touch-panel operator console .Pneumatic reject system .Air system protection on each detection unit .Can be installed either directly onto the production floor or a transportable frame TECHNICAL SPECIFICATIONS .Voltage: 110/230 VAC .Frequency: 50/60 Hz .Power consumption: 150 W .Compressed dry air: 4 Bar (continuously during operation) .Hopper size: 24,000 cc, 24 liters .Flap volume 2 liters
