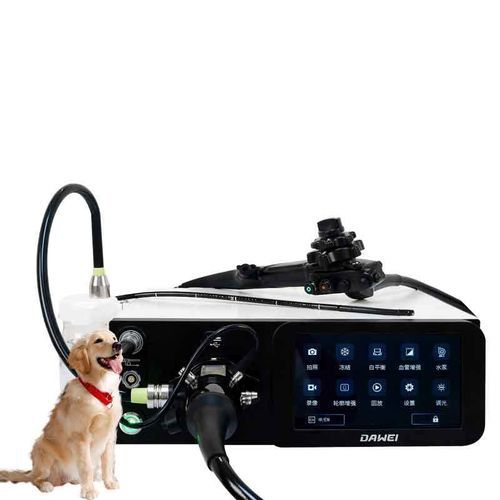

Flexible veterinary endoscope AEG-200goatfor small animalscattle
Add to favorites
Compare this product
Characteristics
- Type
- flexible
- Animal type
- goat, for small animals, cattle, sheep, for pigs, for equine
- Applications
- nasal, abdominal, dental, digestif
- Other characteristic
- with touch screen, for large animals, water-resistant, portable, suitcase, with working channel, video, with digital camera
Description
Product Overview
The AEG-200 Veterinary Endoscope System is a high-definition, full-digital imaging solution designed for precise and safe animal diagnostics. Equipped with advanced image processing, flexible maneuverability, and durable waterproof construction, it ensures veterinarians can perform minimally invasive examinations and procedures with clarity and confidence.
Applications
Performance Features
Product Specifications
Product Name: Veterinary Endoscope Main Unit
Waterproof Rating: IP67
Viewing Angle: 360° full rotation
Main Unit Dimensions: 35 cm × 33 cm × 12 cm
Package Contents: Endoscope + Main Unit + USB Drive, Power Connection Cable + HDMI High-Definition Cable, User Manual, Warranty Card
Mirror body parameters
Product Name | External Diameter (mm) | Forceps Channel Diameter (mm) | Working Length (mm) | Field Angle (°) | Depth of Field (mm) | Up/Down/Left/Right (°)
8828 | 8.8 | 2.8 | 1500 | 140 | 3-100 | 210/90/100/100
6020 | 6 | 2 | 1000 | 140 | 3-100 | 210/90/100/100
1330 | 12.8 | 3.8 | 3000 | 140 | 3-100 | 180/180/160/160
3006 | 3 | 1 | 600 | 120 | 3-100 | 180/180
Key Features / Technical Specifications
The AEG-200 Veterinary Endoscope System is a high-definition, full-digital imaging solution designed for precise and safe animal diagnostics. Equipped with advanced image processing, flexible maneuverability, and durable waterproof construction, it ensures veterinarians can perform minimally invasive examinations and procedures with clarity and confidence.
Applications
- Gastrointestinal examination for large and small animals
- Respiratory tract inspection (bronchoscopy)
- Ear, nose, and throat examinations (otoscopy, rhinoscopy)
- Reproductive tract diagnostics
- Minimally invasive surgeries and biopsies
- Clinical use in horses, cattle, dogs, cats, pigs, sheep, camels, birds, and exotic animals
Performance Features
- High-Definition Endoscope: Applicable to all clinical departments; 1920×1200 resolution with vivid detail; supports multiple HDMI/DVI output resolutions
- Dual LED Light Source: Five adjustable brightness levels for optimal visibility
- IP67-rated HD waterproof lens: Internally sealed with special materials, making it waterproof, oil-resistant, and corrosion-resistant
- Touchscreen Operation: Highly sensitive, user-friendly 1080P display
- 360° all-round steering without blind spots: Flexible 360-degree lateral rotation eliminates visual blind spots effectively
- Vision Clarity for Confident Diagnosis: High-definition digital signals combined with structural enhancement and color enhancement technologies ensure every image is crystal clear
- Lightweight handpiece with optimal grip comfort: Superior handling for effortless operation, newly upgraded for exceptional stability, intuitive button layout enables precise and convenient control
Product Specifications
Product Name: Veterinary Endoscope Main Unit
Waterproof Rating: IP67
Viewing Angle: 360° full rotation
Main Unit Dimensions: 35 cm × 33 cm × 12 cm
Package Contents: Endoscope + Main Unit + USB Drive, Power Connection Cable + HDMI High-Definition Cable, User Manual, Warranty Card
Mirror body parameters
Product Name | External Diameter (mm) | Forceps Channel Diameter (mm) | Working Length (mm) | Field Angle (°) | Depth of Field (mm) | Up/Down/Left/Right (°)
8828 | 8.8 | 2.8 | 1500 | 140 | 3-100 | 210/90/100/100
6020 | 6 | 2 | 1000 | 140 | 3-100 | 210/90/100/100
1330 | 12.8 | 3.8 | 3000 | 140 | 3-100 | 180/180/160/160
3006 | 3 | 1 | 600 | 120 | 3-100 | 180/180
Key Features / Technical Specifications
- High-definition, full-digital imaging
- 1920×1200 resolution
- Multiple HDMI/DVI output resolutions
- Dual LED light source with five brightness levels
- IP67 waterproof, oil-resistant, corrosion-resistant lens
- 1080P touchscreen display
- 360° full rotation viewing angle
- Lightweight, ergonomic handpiece
- Package includes all necessary cables, user manual, and warranty card
