Lift-skip mini dumper MD500FL

crawlergasoline

Brief description

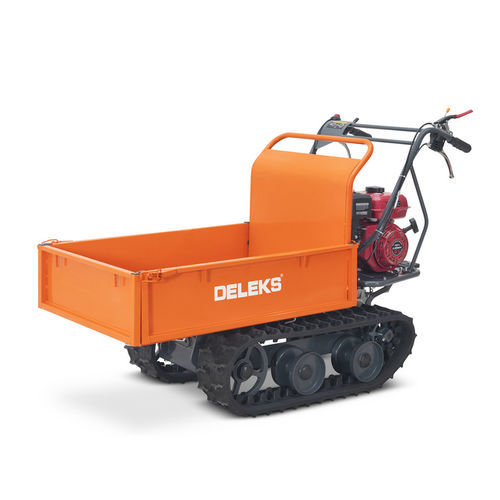

The DELEKS MD-500FL is a tracked petrol mini dumper equipped with a Lifan 6.5 HP engine, a manually tipping hopper and a maximum load capacity of 300 kg. Compact and maneuverable, it is suitable for material transport on construction sites, farms and on steep or uneven ground.

Product description
The DELEKS MD-500FL is designed to simplify material handling where wheelbarrows or wheeled carriers are inefficient. Rubber tracks provide secure traction on rough, muddy, slippery or inclined surfaces, making the machine suitable for building sites, agricultural holdings, mountainous and forested areas. Its compact, well-balanced chassis enables easy passage through gates, doors and narrow passages. The manual tipping hopper allows quick and controlled unloading even when fully loaded. Adjustable hopper dimensions increase versatility for different load types.

Applications

• Construction materials
• Firewood and timber
• Stones and aggregates
• Waste and production residues
• Agricultural inputs and equipment

Technical features and advantages

• Lifan petrol engine 6.5 HP, simple maintenance
• Mechanical gearbox with 3 forward speeds + 1 reverse
• Maximum load capacity: 300 kg
• Manually tipping hopper for fast, controlled unloading
• Hopper length adjustable from 907 to 1040 mm
• Hopper width adjustable from 600 to 860 mm
• Hopper depth: 204 mm
• 180 mm rubber tracks for high traction and stability
• Compact, well-balanced frame for improved maneuverability
• Simple and intuitive controls
• Net weight: 178 kg
• Gross weight (with packaging): 213 kg

Certifications – Warranty – Support

• Machine compliant with CE directives
• Equipped with safety guards
• 2-year warranty
• Technical support and spare parts available

Documentation provided

• CE conformity declaration
• User and maintenance manual
• Invoice or fiscal receipt

Technical specifications

• Total width: 700.0 mm
• Weight (net): 178.0 kg
• Total height: 1100.0 mm
• Load capacity: 300.0 kg
• Total length: 1500.0 mm
• Engine: Lifan 168-F2 6.5 HP
• Start: recoil
• Fuel consumption: 1 l/h
• Packaging dimensions (L*W*H): 1135.0*765.0*880.0 mm
