Ideal for Profile Probes, ThetaProbes and SM150T sensors
8 channel logger with weather-proof case and battery power
Free use of DeltaLINK-Cloud data sharing service

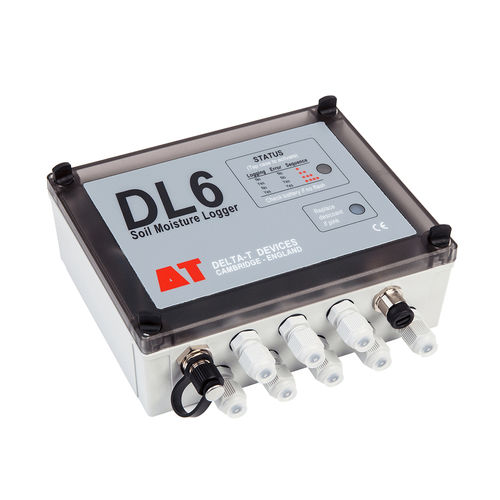

The DL6 is a dedicated data logger optimised for use with Delta-T soil moisture sensors. It can be used with combinations of ThetaProbes, SM150T Soil Moisture Sensors and Profile Probes, and also accepts rain gauge and soil temperature probe inputs. Up to 16000 readings can be stored in memory.
The DL6 can record data from:
6 soil water content sensors (or other analog voltages)
1 temperature sensor
1 pulse counter (e.g. rainfall)
DL6 – perfect partner for Profile Probes
The DL6 provides a cost-effective solution for logging Profile Probes. It handles a PR2/6 (100cm depth) or a PR2/4 (40 cm depth). The IP68 cable makes connection easy, and the DL6 PC software simplifies sensor configuration and data collection.
Designed for field use
The DL6 is well suited to both research applications and irrigation monitoring. To minimise the need for opening the case, data is collected via an external RS232 socket, and the status of the logger can be checked using a vibration-activated LED. DL6 Loggers include a novel accelerated logging feature to allow the tracking of wetting fronts.
Storage, communications and power
The DL6 can be connected to a Delta-T Devices GPRS modem system for remote communication functionality (this system does not supply power to the logger).
