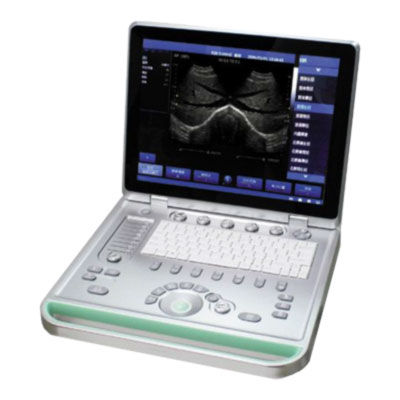

Portable veterinary ultrasound system Sonostar SS-8
for reproductive imagingfor abdominal imagingbattery powered

portable veterinary ultrasound system
portable veterinary ultrasound system
Add to favorites
Compare this product


Characteristics

Ergonomics
portable
Applications
for reproductive imaging, for abdominal imaging
Other characteristics
battery powered, wireless

Description

-Light-weight -15 inch LCD screen -Full digital imaging technology, crystal-clear Image -Broadband multi-frequency probes -2 probe connector -Silica gel backlight gravure laser keyboard – ARM system powerful function, include report, can work with laser printer -Built-in battery(can work more than 3 hours) -High Cost-effective Specifications: -Image mode: B,M,2B,B/M,4B -Gray scale: 256 gray, and pseudo color -Display: 15”LCD monitor -Transducer frequency: 2-11Mhz -Digital technology: Wide-angle imaging, Panoramic focusing technology, Rolling M technology -Scanning depth: 300mm -Imaging Pre-processing: Cloud processing technology, 8-segment TGC, Gain(B&W), Dynamic range, Persistence, M Soften, Noise suppression -Imaging Post processing: Image enhancement, Gray Map, Colorize Map, Tissue Specific Imaging, Left/right reverse, Up/down reverse -Cine-loop: 334 frame cine loop memory -Zoom: Pan zoom -THI: Tissue Harmonic Imaging -Optimize -Store: built-in 8G memory -Communication: DICOM 3.0 -Print: by video printer, or by laser printer -Report edit function -Measurement & Calculations: B mode: Distance, angle, area, volume, trace length, distance ratio M mode: Distance, time, slope, HR Software packages: Abdomen, OB, gynecology, small Part -Transducer connector: 2 -Peripheral ports: 1 BNC video port, 2 USB ports, 1 networking-port, 1 power inlet port -Power supply to power adapter: AC 100-240V 50/60HZ <80VA. -Built-in battery: work 3 hours -Overall size: 362mm×340mm×60mm -Total weight: 4Kg(with battery)
