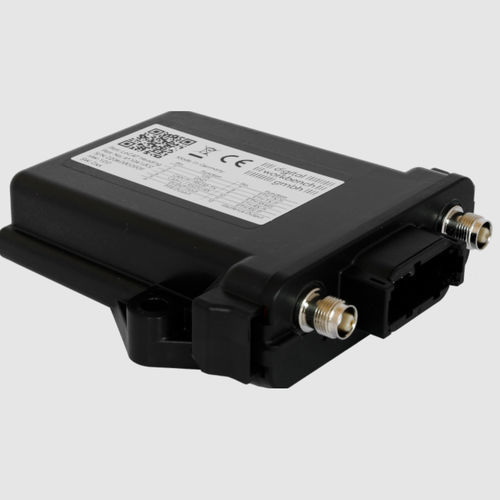

GNSS module with patch antenna LoCAT Heading

BeiDouGALILEOGPS

The LoCAT Heading is a dual GNSS RTK multiband receiver for universal use in applications that require precise position and direction determination, such as mobile robotics or off-highway applications. It has an unrivalled price-performance ratio in its class and can also be used in harsh conditions thanks to its robust and compact design. With the LoCAT Heading, you should be able to rely on a compact positioning module for your machines and devices right from the development stage. A mechanically robust, waterproof and dustproof housing with IP69K protects the LoCAT module from harmful environmental influences even in the most difficult application scenarios. By separating the antenna and receiver, the LoCAT can be installed in your system in such a way that it can be protected against access and theft. A LoCAT Heading can be easily combined with various active RTK antennas available on the market. The availability of standardised interfaces (CAN, Ethernet and RS232) and common protocols (NMEA 0183, RTCM, UBX, NMEA2000) minimise the development and adaptation effort in your overall system. Thanks to the integrated functions for receiving RTK correction data (NTRIP client/server), a centimetre-accurate position can be calculated in just a few steps. The device is prepared for IoT use (MQTT) and utilises the machine’s existing internet connection for this purpose. To realise functions such as position correction, L-band corrections or dead reckoning, the LoCAT Heading can be tailored to your requirements ex works with additional options. The LoCAT Heading is also available with single-pair Ethernet. Please contact our support team for more information. - Mobile robotics - Agricultural machinery - Construction machinery - Item number: 41.106.1.002 - Dimensions: 130 x 120 x 36 mm - Environmental conditions: -30 °C — +85 °C - Voltage (VIN): 9 — 36 VDC - Current consumption (operating / idling): up to 0.5 A / 100 µA - Connections: 1x Deutsch DTM12, 2x TNC incl. antenna feed - Protection class: IP69K - GNSS systems: GPS/QZSS: L1 / L2, Galileo: E1 / E5, GLONASS: L1 / L2, Beidou: B1 / B2 - GNSS correction features: SBAS L1, RTCM, RTK, Moving Base Line - GNSS update rate: up to 20 Hz - GNSS precision: RTK: 1 cm + 1 ppm CEP, SBAS: 1 m CEP - GNSS start-up time: Cold Start: max. 30 sec, Warm Start: 2 sec - CAN: 1 x (highspeed / FD, up to 1Mbit/s), termination toggleable, switchable with RS232 - Event input: 1 x (up to VIN tolerance) - Geofence output: 1 x (push-pull up to VIN, max. 0.5 A) - Recovery input: Reset to factory settings - RS232: 1200 – 460800 Baud (adjustable), switchable with CAN - Ethernet: 10 / 100 Mbit/s (standard configuration interface) - Wake-up/Sleep: CAN, RS232 - Display: 1 x status LED (red / green / blue) - Minimum order quantity: 10 units | Price on request - Delivery time: 8–10 weeks depending on component availability and inventory - Included components: LoCAT module incl. Deutsch DTM12 connector; antennas sold separately
