Seed sensor with automatic cleaning alarm Master Integra

with counting function

Overview

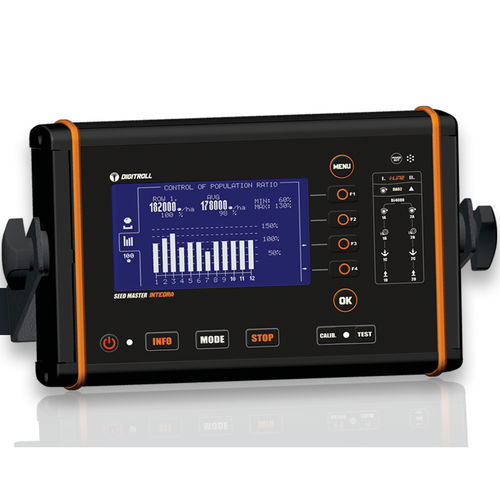

Seed Master Integra is an integrated seeding monitor for planters and air drills providing seed-flow and blockage detection, seed counting and population display, granular fertilizer flow monitoring, hopper level alarms, rotation guards and hectare counting. The unit displays performance for up to 128 rows on a high-contrast graphical 4.7-inch LCD. Two i-LiNE ports allow separate monitoring for seed and fertilizer rows. Operation is via direct keys and status LEDs.

System Features

• Seed-flow/blockage monitoring for up to 3 independent products on pneumatic and some mechanical drills
• Seed count, fertilizer and insecticide flow monitoring for planters
• Full seeding control for planters up to 24 seed rows + 24 fertilizer/insecticide rows
• On-the-go calibration of target seed density
• Manual or automatic speed tracking
• Tramline regulation (symmetric or asymmetric)
• Row closure motor/actuator end-position monitoring
• Hopper level display with low-level alarm
• Two rotation guards (one channel with numeric RPM display)
• Detection and indication of sensor dust accumulation or blockages

System Functions

• Planter functions: seed count, product flow monitoring, tramline control
• Drill functions: multi-product flow and blockage detection
• Area counting (hectare counter)

Seed Blockage Sensors – DS4000i (summary)
DS4000i optomodules are designed for seed-flow monitoring on drills. Each module uses four infra sensors to detect small seeds (e.g. oilseed rape) and registers flow without needing seed buildup in the hose. Fast and precise calibration allows immediate detection of blockages.

Seed Sensor Features

• Seed flow / blockage detection (DS4000i)
• Linear connection up to 128 rows
• On-the-go calibration of expected seed density
• Compatible with air hoses Ø 25–35 mm
• Particle detection with 4 infra pairs
• Quick, tool-free sensor opening for cleaning

Fertilizer Blockage Sensors – DSGR4000i (summary)
DSGR4000i modules monitor granular fertilizer flow continuity on precision planters, air drills or mechanical drills. Each optomodule contains a microcontroller for intelligent signal processing. Linear connection and interchangeability speed up installation.

Fertilizer Sensor Features

• Granular fertilizer flow / blockage detection (DSGR4000i)
• Linear connection up to 128 rows
• Calibration of expected fertilizer density
• Compatible with air hoses Ø 25–35 mm
• Particle detection with 4 infra pairs

Dust Detection & Compensation (DDC)
Digitroll sensors include Dust Detection & Compensation to extend operation between cleanings. The system increases IR light output as sensor surface dusts; when a threshold is reached a 'dusty sensor' indicator is shown and a cleaning alarm can be triggered. DDC maintains sensitivity automatically.

System Parts & Accessories

• Monitor: Seed Master Integra
• Seed Blockage Sensor: DS4000i
• Fertilizer Blockage Sensor: DSGR4000i
• Speed Module: DA 02i (wheel signal receiver)

Blockage Sensors Technical Notes

• Sensor type: Photocell optomodule
• Blockage sensors: DS4000i / DSGR4000i / DSmGR4000i
• Standard detectable objects: seeds, granular fertilizers, microgranulates
• Minimum detectable particle size*: 1–2 mm (depends on object speed and sensor dust status)
• Maximum detectable object speed: approx. 25 m/s
• Optical detection elements: 4-pair
• Detection process: Digital Signal Processing with ADC and automatic dust compensation

Integra Monitor Technical Specs

• Display: High-contrast graphical LCD 4.7-inch
• Backlighting: LED
• Soft keys: 4
• Quick keys: 7 for monitor modes
• Operating voltage: 10–16 VDC
• Operating temperature: -20 to +70 °C
• Storage temperature: -30 to +80 °C
• Protections: Overcurrent and polarity reversal protection
• Dimensions (W x H x D): 225 x 140 x 35 mm

Typical Applications & Benefits

• Combi air drills applying seed and fertilizer at different rates
• Air drills with 64+ seeding rows
• Planters requiring photo-sensor control plus additional regulation functions

Technical Specifications

• Model: Seed Master Integra monitor
• Max monitored rows: up to 128
• Simultaneous products monitored: up to 3
• Supported planter config: up to 24 seed rows + 24 fertilizer/insecticide rows
• Sensor connection: linear up to 128 sensors
• Sensor optical elements: 4 infra pairs
• Min detectable particle: 1–2 mm
• Max detectable speed: approx. 25 m/s
• Power: 10–16 VDC
• Operating temp: -20 to +70 °C; Storage temp: -30 to +80 °C
• Monitor dimensions: 225 x 140 x 35 mm
• Key features: on-the-go calibration, manual/automatic speed tracking, tramline regulation, hopper level alarm, rotation guards, DDC
