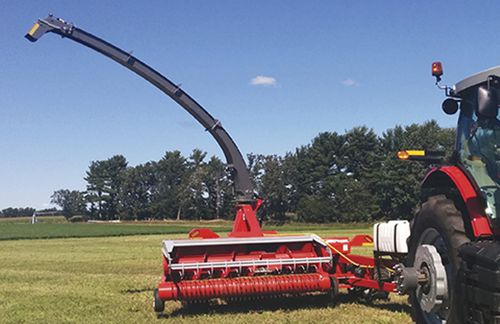

Towed forage harvester F-41 Stinger

Easily load to the left or right, the stinger raises up to a height of 18.5’ (5.6 m) with a length of 18’ (5.5 m) and offers 280° rotation with a 4 m minimum reach. The modular design is convertible from the side loading to a trailed loading configuration. Folds down safely for transport to a height of less than 3 m and is fully supported on an integrated hydraulic accumulator suspension for a smooth ride in the field and down the road. A dedicated, fully integrated heavy-duty transition base is installed on all F41 STINGER harvesters. The stinger is fitted with abrasion-resistant steel Hardox 450 and Domex 100 liners. These are fully replaceable with direct access from the top. The F41 Stinger is equipped with, two section bi-fold deflector, standard wide-angle day and night camera. 7 inch in-cab color monitor, LED spot light and electrohydraulic cab controls for all three functions (height, rotation and deflector angle). Requires one additional close-circuit hydraulic SCV (pressure compensated or load-sensing pump) with flow control adjustable to 2.5 gpm.
