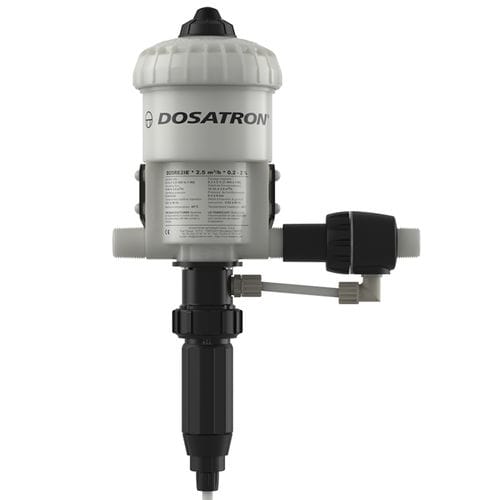

Dosing pump D25RE2 IE PVDF
waterfood additif dosingdrug dosage

Add to favorites

Compare this product

Go to the Dosatron International S.A.S. website for more information

Characteristics

Application

water, food additif dosing, drug dosage

Other characteristics

dosing, piston

Flow

Min.: 10 l/h
(2.64172 us gal/h)

Max.: 2,500 l/h
(88.28667 us gal/h)

Pressure

Min.: 0.3 bar
(4.35 psi)

Max.: 6 bar
(87.02 psi)

Description

The Expert D25 IE PVDF range is particularly suitable for difficult dosing conditions, such as those related to corrosive or abrasive additives. .Proportional dosing and without electricity .Proportionality dependent on water flow .PVDF body with high chemical resistance .Motor protected by external injection kit Specifications .Injection range 0,2 - 2 % [1:500 - 1:50] .Concentrated additive injection 0,02 - 50 l/h .Stroke volume ~ 0,45 l .Connections NPT-BSP 3/4"M Serial equipments Seals for acidic additives PVDF housing for highly concentrated acids and other aggressive concentrates External Injection
