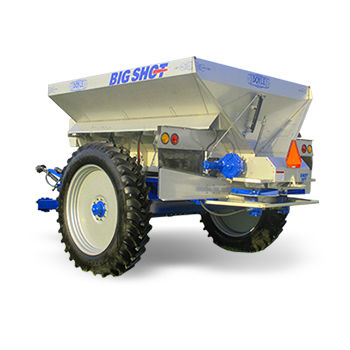

Mounted fertilizer applicator Big Shot
trailedsolidwide

mounted fertilizer applicator
mounted fertilizer applicator
mounted fertilizer applicator
mounted fertilizer applicator
mounted fertilizer applicator
mounted fertilizer applicator
Add to favorites
Compare this product


Characteristics

Mounting
mounted, trailed
Fertilizer type
solid
Other characteristic
wide

Description

• 102-1/4″ wide, #304 stainless steel hopper construction • 88″ overall width – 120″ max. overall width (2 different models) • Hoppers available in 11′ thru 14′ lengths • 2″ x 4″ #304 stainless steel tubing cross supports • 30″ wide belt over chain, heavy pintle chain, 3/8″ thick cross bars with multi-ply belt • Double PWM valves for belt & spinner control • Closed loop spinner control • Extra heavy duty 6:1 reducer spur gear conveyor drive (high efficiency-low maintenance) • Includes heavy duty oil cooler with twin fans, 42 gallons per minute • Standard with 24″ dual dished spinners, mounted on #304 stainless steel undercarriage • “Easy-Set” fully adjustable material divider which allows fine adjustment in spread pattern (fertilizer or lime), all #304 stainless steel • Hydraulic valve and encoder is mounted towards the front of the box, which keeps it out of corrosive environment at rear of box •- Material sensor on gate, let’s operator know when material is out • Front mounted #304 stainless steel oil reservoir, eliminates side spills and evens weight distribution • Fulul-float #304 stainless steel fenders, with mud flaps • Includes all L.E.D. lighting, with standard 7 pin connector • Factory assembled & tested
