Fertilizer dosing unit FX100

automatic

Product

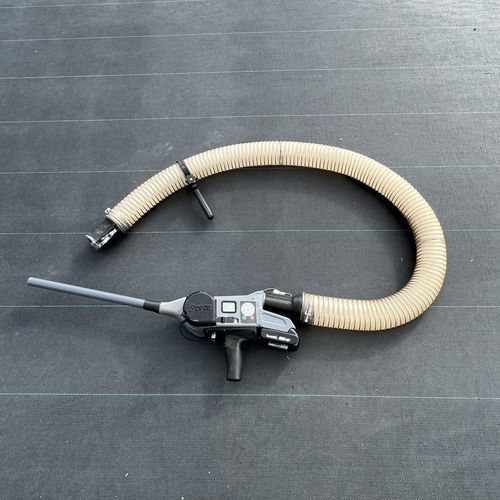

Fertilizer dosing unit FX100, made in Germany

Features

• Reliable dosing via a cell-wheel (self-cleaning effect)
• Dosing quantity per dispense: 0.5–500 g (finely adjustable)
• Motorized dosing by push-button or timed (automatic)
• Display and input field for settings and information
• Standard 18V Makita battery (1.5 Ah recommended for min. 6 h continuous operation)
• Optional stationary operation possible
• Targeted protection rating: IP55 (excluding battery and handle bore)

Advantages

• High dosing accuracy (<0.5% with reference fertilizers) and high reliability
• Good handling and low weight (approx. 1.3 kg incl. battery)
• High maintainability and future-proof (various interfaces available)

Notes / Footnotes

• [1] Excluded from protection rating: battery and handle bore
• [2] Accuracy statement refers to tests with Osmocote and Osmoform

Technical specifications

• Model: FX100
• Dosing range: 0.5–500 g per dispense (finely adjustable)
• Dosing principle: cell-wheel (with self-cleaning effect)
• Accuracy: <0.5% (with reference fertilizers such as Osmocote, Osmoform)
• Operating modes: motorized dosing by push-button or timed (automatic)
• Display / control: display and input field
• Power supply: standard 18V battery (Makita), recommended 1.5 Ah for at least 6 h continuous operation
• Weight: approx. 1.3 kg (incl. battery)
• Options: stationary operation possible
• Interfaces: various interfaces available (future-proof)
• Targeted protection rating: IP55 (excluding battery + handle bore)
