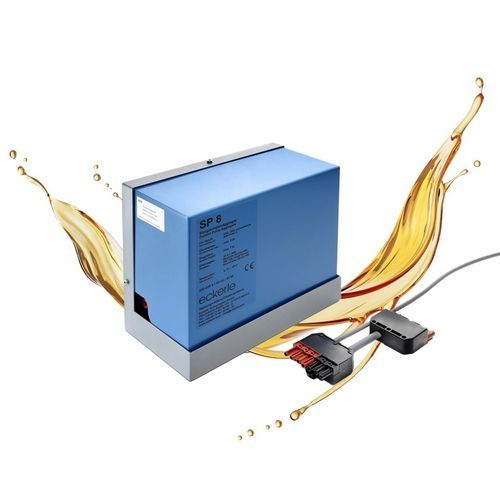

Oscillating piston pumping unit SP8

The SP8 suction pump unit is the first 100% enclosed suction pump specifically designed for oil-fired forced draught burners up to 80 kW, offering an impressive suction lift of up to 7 m. This innovative solution ensures an odor-free oil supply and is ideal for multi-story heating systems. SP8 Suction Pump Unit – Efficient, Safe and Easy to Install Easy electrical connection: The SP8 features a pre-assembled 7-pin torch plug adapter, allowing for quick and easy installation. Single-line operation: The system operates in single-line operation, which further simplifies handling and installation. Safety features: Equipped with an electromagnetic oscillating piston pump, an integrated safety device, a suction filter and a check valve, the SP8 offers maximum safety and efficiency. Line connections: The suction side has a connection of 10 x 1 mm, while the burner side is provided with 2 x 3/8" AG. Safety tray: A safety tray with shutdown in the event of an internal leak protects against unwanted operational disruptions. The SP8 suction pump unit is type-tested according to DIN EN 12514-1:05.2000 and therefore meets the highest quality and safety standards. Areas of application – Versatile & reliable 100% closed suction pump unit for forced draught burners up to 80 kW at 7 m suction head Simple electrical connection via pre-assembled 7-pin burner plug adapter Single-line operation only Ideal for floor heating systems
