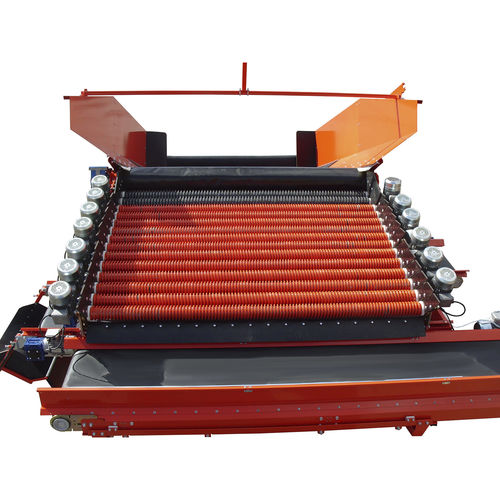

Feed conveyor EM 1109

for big bagsbeltroller

Bunker for inloading from rear tipper or truck with longitudinal, chain-driven rubber belt 1800×4500 mm.
Inside body width 2900 mm containing 9m3.
The bunker can be combined with 1800 mm wide coil cleaner and one or several screen grading modules as well as filling systems
for big boxes or big bags. All mounted on a strong, mobile sub frame.
For larger capacity we can offer EM 1180 with rubber belt, coil cleaner and net grader 2400mm width. Standard Model - Elevator dimension W/L - Capacity EM 1109 - 900×4500 mm. - 5m3 EM 1112 - 1200 4500 mm. - 6,5m3 EM 1115 - 1500×4500 mm. - 8 m3 EM 1169 - 1800×4500 mm. - 9m3 EM 1180 - 2400×4500 mm. - 10m3
