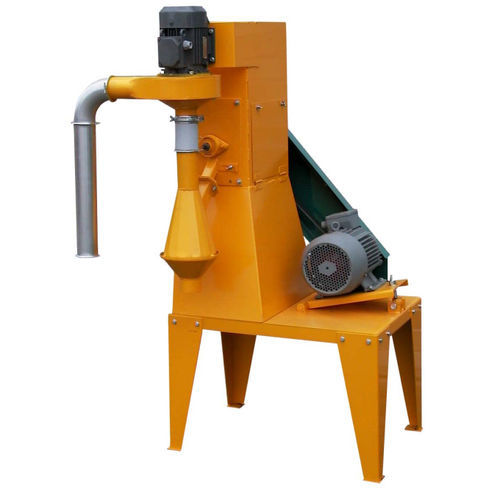

Soybean dehuller DMS 500 N

cornmilletsorghum

Continuous shelling by dry abrasion: African millet, millet, sorghum, corn and soya bean. CONSTRUCTION:in weld-fabricated stainless steel on feet with anti-vibration buffers DIMENSIONS IN mm LxWxH: 1200x800x1500 WEIGHT:166 kg FEED:milling flow rate regulator with hatch CAPACITY:15 litre hopper SPEED OF ROTATION:2000 rpm GRID:Ø1.2mm MOTORISATION:tree-phase electric motor POWER CONSUMPTION:5.5 kW at 3000 rpm DRIVE:drive via 2 toothed V-belts and sheaves under housing BELT TENSIONING SYSTEM:tilting tensioner mount EQUIPMENT • air-operated separator assembly comprising: - cyclone separator for bails placed on the grain outlet, - suction fan driven by 1.1 kW 380 V direct flanged electric motor, - metal connecting pipework between the cyclone and fan with control damper, - leg height adjuster in weld-fabricated channel section height 500 mm, - removable hopper (40 litres) height adjuster • grids with oblong holes (according to product) • electrical unit comprising: - starting circuit breaker with thermal cutout, - flow rate checking ammeter.
