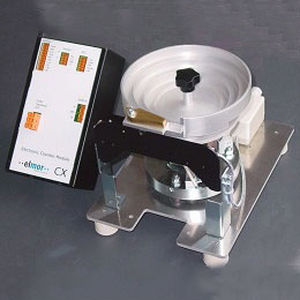

Automatic seed counter CX

researchlaboratory

The elmor CX counter module is mostly used as dosing unit on packaging machines. The open constructed counting head has a narrow width. Thus, multihead dosing systems can be realized easily also in tight spaces. The CX counter module consists of two parts: the counting head with conveying unit and sensor and the control unit. The control unit of the CX counting module is completely remote controlled via a PLC. The technical data of the CX counter module are quite similar to the data of our C1 seed counter. Technical data • Countable parts: 0.2 to 18 mm in diameter • Cylindrical parts up to 20 mm length • All sizes are counted with the same adjustable conveyor bowl; for parts with extreme shapes or sizes the sorting element can be customized • The conveying speed can slow down automatically shortly before reaching the desired amount to achieve a high dosing accuracy. Spherical parts of 2 mm diameter have the following performance values: • Counting speed around 50,000 pieces per hour • Counting error: 1 per thousand or less
