Fuel tank Traspoverticalhorizontalsteel

fuel tank
fuel tank
fuel tank
fuel tank
fuel tank
fuel tank
fuel tank
Add to favorites
Compare this product
indicative price

Characteristics

Fluid
fuel
Construction
vertical, horizontal
Material
steel
Other characteristic
transport
Capacity

250 l, 380 l, 450 l, 620 l, 910 l (66 gal)

Description

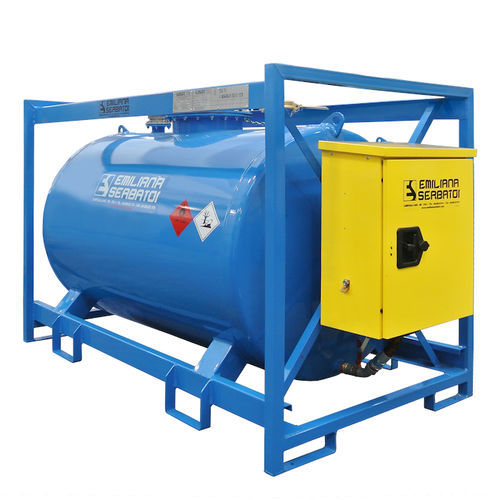

To solve the fuel transport issue, Emiliana Serbatoi has designed and developed TRASPO®, a line of steel tanks, approved by Italian Ministry of Infrastructure and Transport in compliance with ADR regulation and UN marked. TRASPO ® tanks are built in carbon steel, tight welded and are externally protected by a proper steel frame. The TRASPO® range consists of five main models with capacities of 250, 380, 450, 620 and 910 litres. Horizontal (Mod. 380-620-910) and vertical (Mod. 250-450) cylindrical tanks, fixed in a shock proof and anti-roll protective steel frame. Technical specifications: Watertight electro-welded, sandblasted and oven-baked powder coated. Equipped with internal breakwater plates (only for 620 and 910 models). Manhole, diam. Ø 300 mm complete with gasket and tight bolted cover, 10 mm thickness. 2" safety and emergency vent valve, homologated according to regulations. Ball valve installed on the suction point, equipped with a lockable lever to prevent unwanted opening. Lifting lugs for balanced lifting from the top, including when fully loaded. Forklift pockets located on the bottom of the steel frame and proper holes for floor anchoring. Ready for earthing and equipotential connection.
