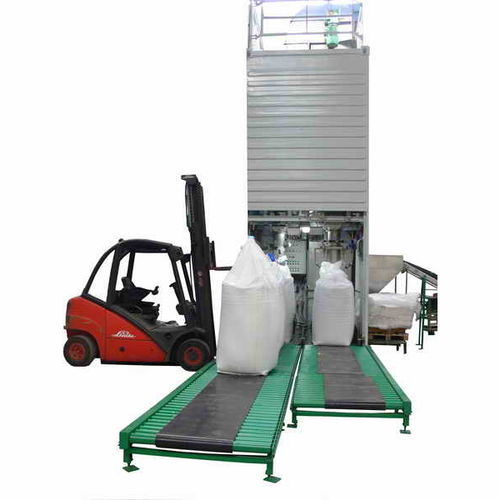

Portable container FIBC big bag fill system with a capacity of 70 tons per hour.
A big bag fill line that is completely integrated in a 20 ft (6 meter) container. The line is portable and can be moved to every decided place. The system consists of a stainless steel fill elevator. The weighing scale is placed under the hopper, to weigh the product. The weighing slide discharges the product directly into the FIBC big bag. This big bag is removed by the roller conveyor unit.
The container body is made of mild steel, but elevator, storage hopper, weigh scale and fill pipe are all constructed of stainless steel #304. The machine operates with a Siemens control PLC and Salter Weightronix weigh indicator.
The complete bag fill operation can be done by one operator to fill the bags and one operator to close the bags. One or two forklifts move the bags away (depending on the distance).
The complete line is portable and can be moved by ship/truck and fits in two 20 foot containers. The compressor, intake hopper and bag roll conveyor are transported in the second container.
Assembly of the Portable Container big bag line is easy to do. The elevator is be pushed out of the container with a hydraulic system. When the elevator is on its maximum height, the total system height is 8500 mm. The roller conveyor, the intake conveyor and intake hopper are installed by a forklift. The container big bag unit is put on its side by means of a crane. The container has three door openings to bring the big bags out and to have the possibility to bring empty big bags into the container.
