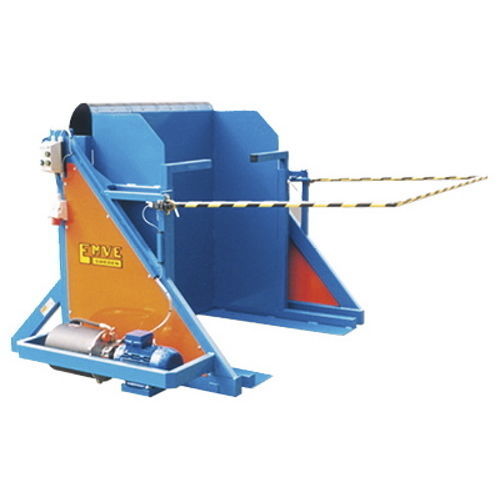

Box tipper BT H series

box tipper
box tipper
Add to favorites
Compare this product


Characteristics

Rotation angle

135 °

Load capacity

600 kg, 800 kg, 2,000 kg
(1,322.8 lb, 1,763.7 lb, 4,409.2 lb)

Description

Hydraulic box turners are available in three different versions, BT 600, BT 800 and BT 2000 for emptying 600, 800 and 2 000 kg boxes respectively. Boxes can be inserted from manual forklifts. Boxes are emptied by turning them through approx. 135° round an axis 1,2 m above floor level. Box turners are fitted with a safety device to eliminate the risk of trapping. When the safety barrier is raised the power supply is cut off. The Box Turner can be modified for emptying large sacks instead of boxes. The BT 2000 is available in versions to individual specifications depending on box dimensions.
