Spraying gun WSSS

automaticplasticmetal

Product name

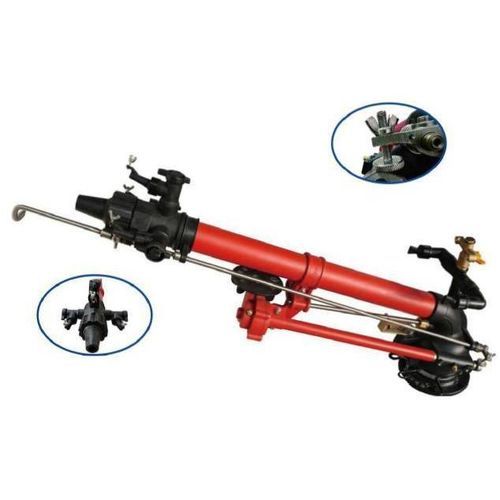

Water Spray Gun Atomization King (WSSS/FSWSSS)

Overview and scope of application
The internal WSSS Atomization King spray gun is designed for farmland irrigation and industrial/mining dust suppression. It is compatible with large and medium reel-type sprinkling machines and can serve as a tail gun for large center-pivot irrigation systems. Typical applications include large-area irrigation projects, stockpile and material spraying for dust control, stadium turf irrigation, and dust suppression at power plants, ports, docks, rail freight yards, coal and coking facilities. The device effectively reduces airborne particulates, including PM2.5.

Main functional range
The product supports multiple nozzle calibers with flow rates from 9.6 m³/h to 19 m³/h, operating pressure between 0.2 MPa and 0.7 MPa, and an effective spray radius of 22 m to 51 m, allowing adaptation to varied soils, terrains, crops and environmental requirements.

Adjustable elevation angle
Patented adjustable elevation angle mechanism (adjustable freely between 0° and 48°).

• 0°: Improved wind resistance; avoids spraying onto greenhouse ceilings.
• 24°: Functionally comparable to NSO turbine spray guns.
• 48°: Suited for irrigation of tall crops such as corn and orchards, and for dust suppression on high stockpiles. Secondary nozzles offer universal adjustability to meet different spraying scenarios.

Spray gun structural features
This turbine-worm type spray gun features a large number of nozzles and freely adjustable elevation between 0° and 48°. The adjustable sprinkler breaker aligns with the set elevation. The design ensures uniform rotation, low pressure loss and smooth, reliable operation.

The spray body and flow stabilizer are drawn from aluminum alloy with a smooth inner wall and precise stabilizer vanes. Construction materials include copper alloy, aluminum alloy, engineering plastics and stainless steel for corrosion resistance.

The gun can operate in sector or full-circle rotation. The adjustable sprinkler breaker produces fine and consistent droplets. With high mechanical strength and stable performance, the unit is widely applied in industrial dust suppression and agricultural irrigation.

Notable components and features

• Copper nozzle with valve
• Double-wing cam for high-efficiency atomization
• Secondary nozzle with valve

Technical specifications

• Model name: Atomization King (WSSS / FSWSSS family)
• Applicable uses: farmland irrigation, reel-type sprinkling machines, tail gun for center-pivot systems, dust suppression in industrial/mining sites, stockpiles, stadium irrigation
• Flow rate range (various nozzle calibers): 9.6 m³/h to 19 m³/h
• Operating pressure range: 0.2 MPa to 0.7 MPa
• Spray radius: 22 m to 51 m
• Nozzle elevation angle: adjustable 0° to 48°
• Rotation modes: sector or full-circle
• Materials: copper alloy, aluminum alloy, engineering plastic, stainless steel (corrosion-resistant)
• Design features: turbine-worm type, high nozzle count, adjustable sprinkler breaker, flow stabilizer with smooth inner wall
• Primary benefits: uniform rotation, low pressure loss, reliable operation, high strength, effective dust suppression (PM2.5 reduction)
