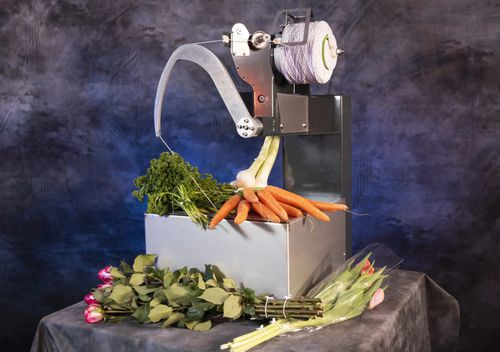

Vegetable binding machine

Overview:
This electric binding machine is developed for industrial applications including printing, hardware, textiles, electronics and food processing. It is a specialized elastic-rope binding model. The tying rope diameter can be selected between 1–1.5 mm, allowing binding of items such as banknotes, joss paper, books, medicine boxes, shoes and socks, circuit boards, cards, noodles and vegetables. The machine combines touch and foot activation for fast operation, provides adjustable tightening force, and is suitable for bundling items of different sizes including soft or compressible products.

Product advantages:

• Increased throughput with a one-second cycle time
• Simplified binding process via combined touch and foot controls
• Reduced labour requirements
• Lower secondary packaging needs
• Core mechanical components treated for high strength and wear resistance
• Electronic control board with imported components for stable performance under varying temperature, humidity and vibration
• Reserved signal interfaces for integration with automated assembly lines

Technical data:

• Product name: BINDING MACHINE
• Power type: Electric
• Worktable height: 280 mm
• Buckling method: Live knot type
• Packing object height: <145 mm
• Material of tying rope: Elastic rope
• Voltage frequency: 220V 50/60Hz
• Binding rope diameter: 1–1.5 mm
• Power: 120V
• Binding method: Integrated touch binding and foot binding
• Packaging speed: 1 second per cycle
• Net weight: 43 kg
• Machine dimensions: L445mm*W385mm*H68mm
• Packing weight: 35 kg
