Aquaculture air blower

centrifugalrotormetal

Overview

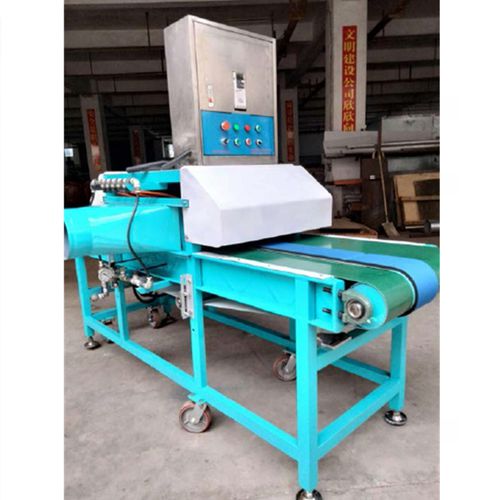

Dry air blowing is an air-blowing cleaning machine designed for bulk post-harvest processing of stem-and-leaf and root-attached vegetables such as Chinese chives, coriander and spinach. It performs cleaning, water removal and sorting in farm fields, cleaning workshops, cold-storage warehouses, canteens and supermarkets, replacing manual drying and cleaning operations and enabling mechanized handling.

Technical features

• Machine body in food-grade SUS304/2B stainless steel; uses dewatered compressed air to deliver strong cleaning capacity and a high cleaning rate without damaging stems, leaves or roots; suitable for delicate stem-and-leaf vegetables.
• Effectively removes surface water droplets from leafy vegetables, reducing time for labeling, soft packaging and boxing and supporting assembly-line operations.
• All materials meet food-hygiene requirements; removed sludge and waste leaves are discharged via sewage outlets for centralized collection; design ensures high cleanliness, low water consumption and stable operation.
• Clamping-conveying section uses double-layer foam (sponge) conveyor belts for soft non-squeezing transport, smooth operation and long service life; meets food-hygiene standards.
• Supports 220 V (mains) and 380 V (industrial) power supplies; conveyor belt speed is steplessly adjustable via frequency conversion; optional emergency-stop switch for different scenarios.
• Easy to operate and maintain, with low operating costs.

Main technical parameters

• Total height of leafy vegetables: 50 cm
• Average thickness: 2–3 cm
• Cleaning conveyor speed: 0.1–0.6 cm/s
• Weight per bundle: 800 g
• Working air volume: 3–5 m³/min
• Working air pressure: 0.2–0.3 MPa (adjustable)
• Power consumption: 1.5 kW
• Overall weight: 300 kg
• Overall dimensions (L×W×H): 2.6 × 1.2 × 1.8 m
• Conveyor belt length: 2.5 m
• Vegetable-contact metal surface: SUS304/2B (food-grade stainless steel)
• Running bracket material: SUS304/2B (perforated)
• Vegetable-contact belt: sponge belt
• Frame structure: spray-painted steel
• Production capacity: 400–1000 kg/h

Specifications

• Model: Dry air blowing
• Brand: AOTUTEC
• Material (vegetable-contact parts): SUS304/2B food-grade stainless steel
• Power supply: 220 V (mains) or 380 V (industrial)
• Power consumption: 1.5 kW
• Working air volume: 3–5 m³/min
• Working air pressure: 0.2–0.3 MPa (adjustable)
• Cleaning conveyor speed: 0.1–0.6 cm/s (stepless frequency conversion)
• Production capacity: 400–1000 kg/h
• Overall dimensions (L×W×H): 2.6 × 1.2 × 1.8 m
• Overall weight: 300 kg
• Conveyor belt length: 2.5 m
• Vegetable-contact belt: sponge belt
• Frame: spray-painted steel
