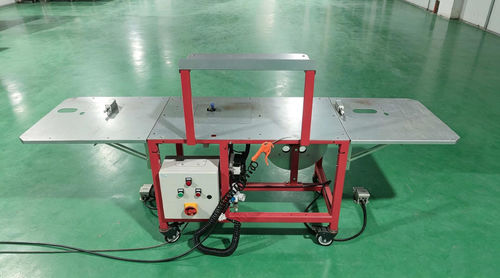

Semi-automatic grafting machine

Product overview
This grafting machine uses amplexiform grafting to process two vegetable groups (solanaceous and cucurbitaceous). Scions and rootstocks are loaded manually in separate steps. A precision grafting knife makes matching cuts at the same angle; silicone clamps align scion and rootstock and secure them automatically with compressed-air assistance. The equipment delivers consistent grafting quality with survival rates up to 98%. Professional operator training improves throughput and success rate.

Operation details

• Scions and rootstocks supplied manually in separate steps
• Grafting knife cuts stems precisely at identical angles
• Silicone clamps align scion and rootstock and clip automatically with compressed-air assistance
• Designed for stable grafting quality with survival rates up to 98%

Technical Parameters and Features

• Operating productivity: 300–550 plants/hour
• Grafting method: amplexiform grafting
• Stem diameter of grafted seedlings: 2.5–3.5 mm
• Operating personnel: 1–3 operators
• Extendable steel stand table working area: from 60×50 cm to 130×50 cm; equipped with 4 wheels for mobility
• Two exchangeable cutting devices to handle solanaceous and cucurbitaceous crops
• Adjustable clip length, feeding and clamping settings
• Simple operation and maintenance; suitable for small and medium nurseries
