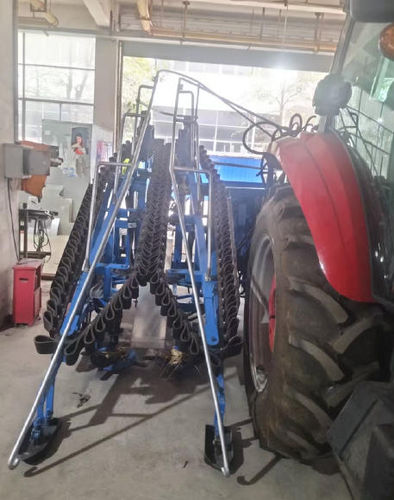

Mounted windrower 4GD-1

tractor-mounted

Overview
Model 4GD-1 side-mounted whole-stalk sugarcane windrower is designed for mechanized whole-stalk harvesting in sugarcane growing regions. Mounted on a 120 HP tractor, it performs single-row and wide–narrow-row harvesting in one pass, preserving stalk integrity to meet mills' whole-stalk feeding requirements. Suitable for large-scale farms and independent growers for field harvesting.

Main functions and benefits
The machine integrates lifting, precision low-cutting, smooth conveying and centralized windrowing to complete the full harvesting sequence in a single pass with a high degree of automation. Precision low-cutting with specially forged cutter blades yields neat, uniform stubs, reducing stalk damage and tearing, minimizing sugar loss and injury to ratoon roots, and promoting better regrowth the following season.

Field adaptability
Adapted to flat land and gentle slopes, the machine can harvest lightly lodged cane. Hydraulic rotation arranges stalks into neat windrows along the travel direction for easy grab loading and transport, avoiding repeated compaction of cane roots and significantly reducing labor demand.

Operation & maintenance
With a robust structure, simple operation and easy maintenance, the machine delivers substantially higher working efficiency than manual harvesting and addresses labor shortages, low productivity and high harvesting costs. Recommended equipment for mechanized whole-stalk sugarcane harvesting.

Technical specifications

• Model: 4GD-1
• Type: Side-mounted whole-stalk sugarcane windrower
• Tractor requirement: Mounted on a 120 HP tractor
• Harvest modes: Single-row and wide–narrow-row harvesting
• Integrated functions: Lifting, low-cutting, smooth conveying, centralized windrowing (one-pass harvesting)
• Cutting design: Precision low-cutting with specially forged cutter blades for neat, uniform stubs
• Field suitability: Flat land and gentle slopes; capable of harvesting lightly lodged cane
• Windrowing: Hydraulic rotation to pile stalks along travel direction for easy loading and transport
• Benefits: Minimizes stalk damage and sugar loss; reduces injury to ratoon roots; lowers labor demand; higher efficiency than manual harvesting
• Design focus: Robust structure, simple operation and easy maintenance
