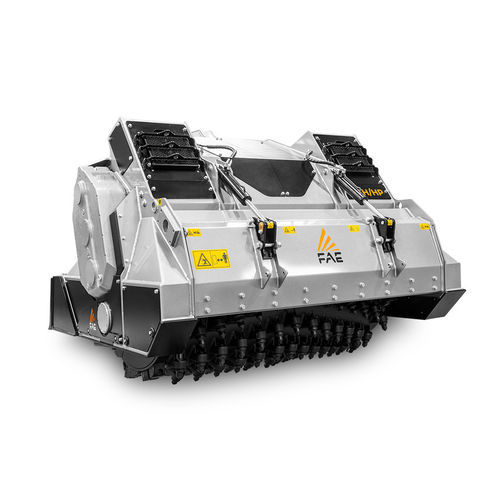

Tractor stone crusher RSH

Tractor stone crusher - RSH - FAE GROUP S.p.A.
Tractor stone crusher - RSH - FAE GROUP S.p.A.
Tractor stone crusher - RSH - FAE GROUP S.p.A. - image - 2
Tractor stone crusher - RSH - FAE GROUP S.p.A. - image - 3
Tractor stone crusher - RSH - FAE GROUP S.p.A. - image - 4
Tractor stone crusher - RSH - FAE GROUP S.p.A. - image - 5
Tractor stone crusher - RSH - FAE GROUP S.p.A. - image - 6
Add to favorites
Compare this product


Characteristics

Other characteristic
for tractors
Tractor power

Min.: 360 ch
(360 hp)

Max.: 500 ch
(500 hp)

Description

The RSH/HP is the ultimate FAE stone crusher, the ideal solution for crushing slabs of rock and stones of up to 20 inches in diameter and at a depth of up to 20 in. It is compatible with tractors of between 360 and 500 HP, and has a working width of 102 in. The RSH/HP is recommended for challenging agricultural conversion operations, when the land contains rock and stones of significant dimensions, in order to prepare the soil for agricultural use. The wide opening and the counter blade allow large material to be guided towards the rotor, as well as maintaining consistent performance while working the land. The optional rear grill holds back larger materials, releasing matter only when it has reached its optimum granulometry. For an excellent, even distribution of the crushed material, the RSH/HP can be fitted with an adjustable steel dosing blade upon request. The side reduction gears with an oil-cooling system guarantee efficiency, reliability and reduced maintenance requirements. The gear transmissions guarantee optimum power transfer and, as a result, a longer lifespan for the components. The use of high-resistance, anti-wear steels for the frame, the interchangeable internal and external guards, and the forged-steel tooth-holder with heat treatment all guarantee the RSH/HP a robust construction that has nothing to fear from even the most challenging tasks.

VIDEO

Catalogs

No catalogs are available for this product.
