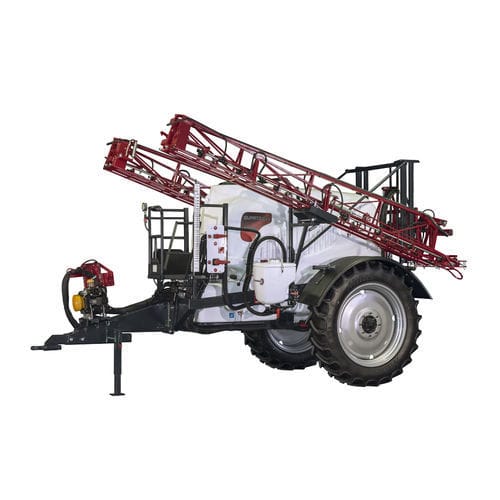

Trailed sprayer QUARTZ ECO AFL
hydraulicfolding armswith diaphragm pump

trailed sprayer
trailed sprayer
trailed sprayer
Add to favorites
Compare this product


Characteristics

Mobility
trailed
Technology
hydraulic
Other characteristics
folding arms, with diaphragm pump
Capacity

3,000 l
(792.5 gal)

Rinse tank capacity

300 l
(79.3 gal)

Working width

16 m, 18 m
(52'05" , 59'00" )

Pump capacity

170 l/min
(44.9 us gal/min)

Description

The Quartz Eco AFL trailed sprayer is the entry level trailed machine in the FarmGEM range, that said it still boasts an impressive array of features for its class. A 3000 litre tank provides excellent capacity. The AFL gull wing folding booms of 16 or 18 metres in width are fully hydraulic and boom tilt facility offered as an option. The specification demanded by legislation such as clean water flushing and hand wash tanks, clothing locker, large pressure gauge and road lighting are fitted as standard. Features possibly not found on other machines in this class would be a heavy-duty axle, 270/95 R36 wheels/tyres with sliding wheel track adjustment, hydraulic road braking, mudguards, stainless steel spray lines and the Bravo 180S auto rate controller with 5 section spray control and will it accommodate DGPS guidance and auto spray section on/off as an optional extra.. All backed up by the FarmGEM three year construction warranty. SPECIFICATION -3000 litre polyethylene rota moulded tank c/w remote drain -300 litre clean water rinse tank c/w rota flush tank rinse nozzle -16/18 metre AFL high tensile steel, fully welded box section construction boom -Hydraulic height adjustment with gas suspension -Hydraulic folding with unique anti-yaw damping system -Self levelling suspension -Rigid drawbar – 170 litre/min 4 cylinder diaphragm pump -Chemical induction hopper c/w hopper and can rinse system -Bravo 180s terminal – Automatic application rate controller -Electric on/off with 5 (7 max) spray section control -Stainless steel 19mm spray lines -Triplet quick fit nozzle bodies with one set of flat fan nozzles -Suction self-fill c/w 6m hose and filter
