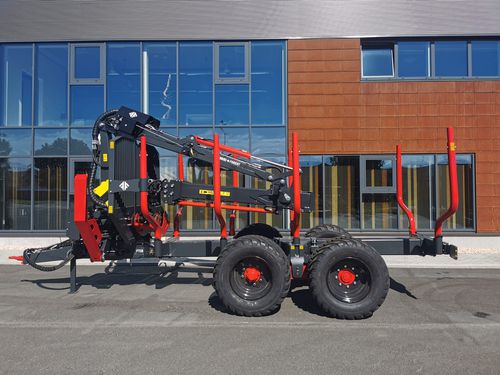

2-axle trailer FT13

forestry13 tonwith hydraulic braking

The standard package includes 3 bank pairs, portable loose banks and a telebank. The length of the load space is 4.7 m and the load area is 2.9 m2. Special steel has been used as much as possible in the construction. You can first purchase FT13 without 4WD equipment as the 4WD system can be retrofitted to the same standard trailer. The tractive force is the same as with the FT11 4WD trailers: 1.7 kN with the tractor hydraulics and 1.9 kN with a separate hydraulic unit. The trailer always has an 8-bolt hub and 550/45-22.5 ELS tractor pattern tyres as standard equipment As an alternative tire, there are 600/50-22.5. Hydraulic or pneumatic brakes are available for two or four wheels for the trailer. A frame extension (1.0 m), additional banks and unbreakable LED tail lights are sold as accessories. Accessories: • Rack for chainsaw, axe and combi tank • Road traffic equipment (includes LED lights, stickers and wheel stoppers) • Operator stand • Biomass box Specification Details Gross weight (kg) 17000 Load area (m2) 2.90 Frame tube dimensions (mm) 250 x 250 x 8 Bolsters, standard (pcs) 3 Hydraulic drawbar steering Standard Steering cylinders (pcs) 2 Brakes Optional Road traffic kit Optional Drive Optional 2WD/4WD Wheel set, standard 550/45-22.5 20pr Wheel set, optional 600/50-22.5 16pr Recommended cranes CR59, CR67+, CR69+, CR89 Biomass box Optional Ground clearance with standard tires (mm) 710
