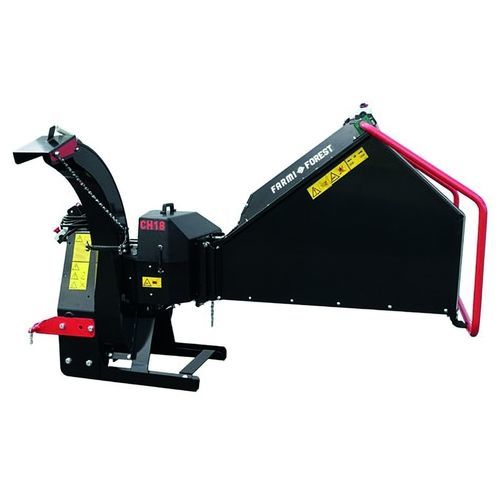

Mounted wood chipper CH18

PTO-drivenhydraulic supply

Despite its small size, the CH18 disc model wood chipper is a powerful tool for landscaping involving wicker, branches and tree tops. The infeed chute has been equipped with a hydraulic feed roller, which rotates on its own hydraulic engine. The feed roller makes it easy to bring branches to the blades. The wood chipper inlet is 18 cm x 22 cm. Pruned straw also produces good quality energy wood chips. It is recommended to rotate the chipper with a power output of 1000 rpm. This will provide sufficient blowing power, uniform chips and better output. The size of the chips is adjustable in steps of 10 mm. Accessories: • Belt gear (double speed) • Double disc • Universal shaft • Replacement Blades (4pcs) Specification Details Application Landscaping Output (m3/h) 5-15 Chip thickness (mm) 10 Max. wood diameter (mm) 180 Power demand (kW) 30-70 Speed of rotation (rpm) 540-1000 Blades (pcs) 4 Chipper weight (kg) 400 Rotor diameter (mm) 670 Rotor weight (kg) 55 3-point mounting Standard Discharge pipe reach, short/long (m) 2.2/2.9 Discharge pipe turning degrees Manual/to two sides Smart Feed - electrics Standard Power transmission Tractor Feed Manual Feeder Roller feeder Hydraulic cover opening No Hydraulic discharge pipe steering No Crane mounting No Remote control No
