Dump trailer FORTIS 2200
2-axlegrain16 ton

dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
dump trailer
Add to favorites
Compare this product


Characteristics

Construction
dump
Number of axles
2-axle
Application
grain
Payload
16 ton, 15 ton
Brake system
with hydraulic braking
Other characteristic
push-off, moving floor, shredder
Empty weight

7,000 kg
(15,432.4 lb)

Recommended power

Min.: 133 ch
(133 hp)

Max.: 173 ch
(173 hp)

Load volume

35 m³
(1,236.013 ft³)

Loading case lenght

7,000 mm
(275.6 in)

Loading case width

2,220 mm
(87.4 in)

Loading case hight

2,000 mm
(78.7 in)

Description

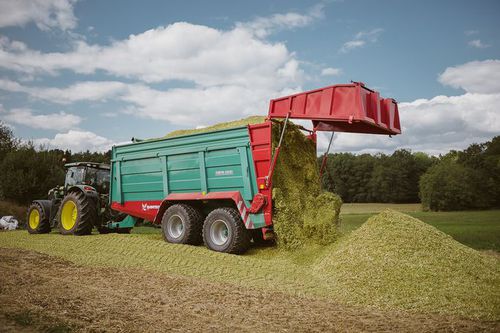

The Universal push-off trailer Fortis is a year-purpose vehicle for transport and spreading tasks. The Fortis meets all expectations and is perfectly suitable for modern farmers, large companies and contractors. Standard rear opening (silage-flap) is particularly suitable for transport of silage, grain, wood chips and other bulk materials. Universality is manifested by a fast and simple change to the standard or universal spreader unit. HIGHLIGHTS CHASSIS Sturdy frame made of 6 mm profile, tandem chassis with parabolic springs, high hitch with towing eye D40 mm, hydraulic parking jack, wheel chocks AXLE Two heavy duty ADR-axles with 10-stud rims, track 2100 mm, wheelbase 1810 mm, axle load 14800 kg/axle, steering axle (rear), brake cam 406 x 140 mm BRAKES Hydraulic brake with mechanical valve and ALB or dual-line airbrake system with ALB on all four wheels, separate parking brake BODY U-framework profile 200 mm, steel sidewalls 1500 mm high with collapsible steel extension boards 500 mm, absolute smooth inner walls, steel floor 5 mm thick, plug-in view grill, hydraulic tailgate FLOOR CONVEYOR Hydraulic drive with two hydraulic motors and two spur gear, two-speed control of the floor conveyor drive, forward and reverse flow, 4 high-strength round steel chains (14 x 50 mm) with sturdy floor strips, floor conveyor feed can be easily operated from the tractor cabin, automatic chain tensioner
