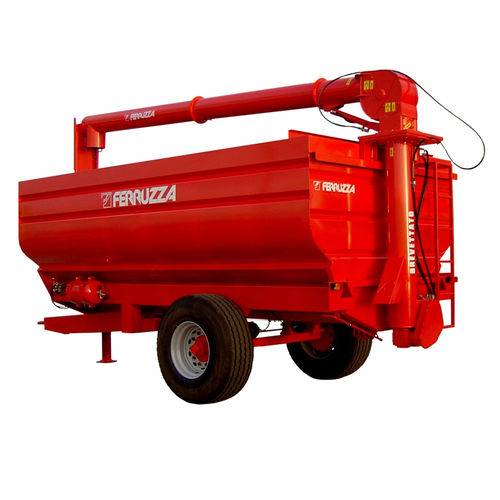

Chaser bin LG 120 - LG 120P SERIES
single-axlegrain6 ton

chaser bin
chaser bin
chaser bin
chaser bin
chaser bin
Add to favorites
Compare this product


Characteristics

Construction
chaser bin
Number of axles
single-axle
Application
grain
Payload
6 ton, 12 ton
Brake system
with hydraulic braking, with pneumatic braking
Other characteristic
single-auger
Empty weight

3,230 kg
(7,120.9 lb)

Load volume

16.5 m³
(582.692 ft³)

Description

Standard equipment • Propeller shaft with clutch • 360-degree hydraulic rotation of the auger boom • Hydraulic lifting of the auger boom • Diameter of the auger boom + upright pipe 273 mm • Safety valves of the auger boom (rotation+lifting) • Hydraulic jack • Stiff suspensions for types LG 120 – LG 120 P • Parabolic leaf springs with an eye and a flat end for LG 120 B – LG 120 BP • 100 mm square axle, cast iron drums 400x80, 10 stud wheel hubs, and adjustable brake levers • The lower bend is made up of an oil-immersed 90 degree bevel gearbox (Ferruzza patent) • Upper articulated bend (Ferruzza patent) • The rotation of the auger boom is performed by means of a ring-pinion gear • The auger conveyors located under the floor of the container and inside the boom are supported by an intermediate bearing • Auger bearings have a labyrinth seal and can be greased from outside • All bearings located inside the articulated bend have a labyrinth seal and can be greased from outside
