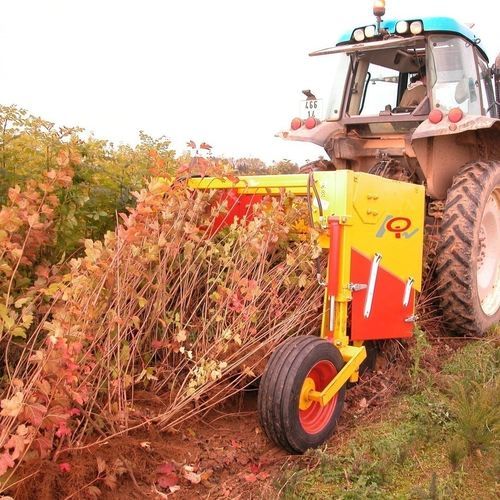

Mounted plant lifter BL900L

nursery plants

Short description
Bed lifter with up to 40 cm lifting depth. Also suitable for heavy soil. Equipped with a double shaking mechanism; the belt drive ensures excellent and virtually silent operation. Minimum harvesting costs per plant thanks to high harvesting speed and low tractive force.

General
Standard width: 135 cm, other dimensions available on request.

Features

• Type BL with fixed blade; type BLX with movable blade
• Double shaker mechanism with a constant lifting height
• Drive: gearbox and timing belts
• Knife made of wear-resistant steel
• Crankshafts fitted with conical bearings
• Clearance height: 80 cm
• Maximum digging depth: 40 cm
• Rear wheels: hydraulically adjustable
• Tractor: from 75 HP
• Weight: 850 kg

On request
2 front support wheels

Characteristics / technical specifications

• Model designation: BL900L
• Standard width: 135 cm (other dimensions available on request)
• Maximum digging (lifting) depth: 40 cm
• Clearance height: 80 cm
• Drive system: gearbox and timing belts
• Shaking: double shaker mechanism for constant lifting height
• Blade types: fixed blade (BL) or movable blade (BLX)
• Knife material: wear-resistant steel
• Crankshafts: fitted with conical bearings
• Rear wheels: hydraulically adjustable
• Required tractor power: from 75 HP
• Weight: 850 kg
• Optional: 2 front support wheels available on request
