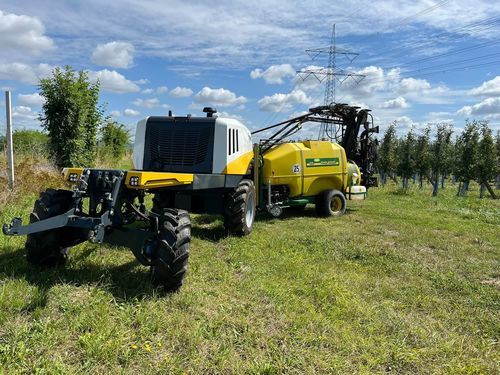

Hydrostatic tractor AGRODROIDE AD one

continuously variablefor row crops4-cylinder

Overview
Autonomous operation and universal applicability: AGRODROIDE AD 1. Navigation is based on LIDAR and a GNSS‑secured RTK correction signal. Mission control and remote monitoring are carried out via mobile phone or tablet.

Avoidance or replacement of a workplace

• Situations that are hazardous to health, especially during crop protection operations
• Monotonous tasks that require sustained high concentration
• The purpose is not to reduce jobs but to address shortages of skilled operators
• Workplaces that cost the company €20,000–30,000

Innovative technology

• AGRODROIDE AD 1 is designed to be cost-effective for farm sizes of 20–30 ha through labour savings, versatility and compatibility with existing equipment
• Drive coupling can be used without restriction; the 75 hp HATZ diesel meets current emission standards
• AGRODROIDE AD 1 is practice-oriented: all-wheel drive (up to 10 km/h) ensures reliable operation in common agricultural conditions
• The price of the AGRODROIDE AD 1 is lower than the purchase price of a standard tractor
• Navigation is based on LIDAR and a GNSS‑secured RTK correction signal
• Operation control and remote monitoring are performed via mobile phone or tablet

Related features / equipment

• Drive coupling usable without restriction
• All-wheel drive, hydrostatic continuous stepless speed drive
• PTO: mechanical drive at the rear and between axles (Drive 540 rpm, optional 1000 rpm); front PTO hydraulic drive 0–56 rpm at 210 bar adjustable
• Attachment locations: front, center, rear in three-point linkage; semi-mounted hopper or crop protection sprayer

Technical specifications

• Engine: HATZ 4 cyl 4H50TICD
• Type / Power: Diesel 55.4 kW, 75 hp (up to 120 hp)
• Displacement: 1,967 ccm
• Number of cylinders: 4
• Emission standard: Stage 5
• Transmission: Stepless hydrostatic permanent; all-wheel drive (0–9 km/h)
• Hydraulic drive: hydrostatic continuous stepless speed drive
• Axles: Hydraulic individual wheel drive
• Steering: Axle pivot steering with demand-controlled single wheel brake on the rear axle
• Service brake: Hydrostatic
• Parking brake: Spring-loaded integrated multi-disc brake in the rear wheel drives
• PTO shaft: Mechanical drive at the rear and between axles (Drive 540 rpm, optional 1000 rpm)
• Front PTO: Hydraulic drive 0–56 rpm at 210 bar, adjustable
• Working hydraulics 1: Gear pump max. 17.2 l/min at 210 bar, electrohydraulic directional control valves
• Working hydraulics 2: Gear pump 0–56 l/min at 210 bar infinitely variable
• Power lift (front): CAT 1 (optional CAT 2), lifting capacity 1,200 kg
• Power lift (center): CAT 1 (optional CAT 2), lifting capacity 1,200 kg
• Power lift (rear): CAT 1 (optional CAT 2), lifting capacity 1,800 kg
• Battery capacity: 24V – 66 Ah
• Fuel tank: 100 l
• Hydraulic system: 45 l – HVLP 46 hydraulic oil
• Operating temperatures: -15 °C to +40 °C
• Front tyres: 260/70R16 – AGRIMAX RT 765
• Rear tyres: 320/70R20 – AGRIMAX RT 765
• Vehicle weight (empty): 1,650 kg
• Gross vehicle weight: 3,000 kg
• Overall length (height): 4,240 mm
• Overall width: 1,560 mm
• Outside track radius without single wheel brake: 4,250 mm
• Outer track radius with single wheel brake: 3,750 mm
