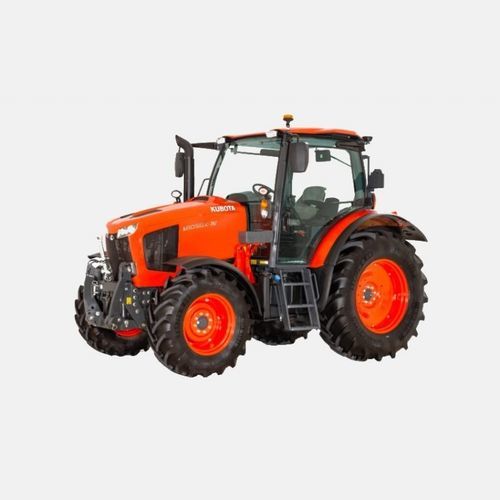

Power-shift tractor MGX-IV
4-cylinder4 wheel drive3-point hitch

Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch
Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch
Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch - image - 2
Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch - image - 3
Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch - image - 4
Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch - image - 5
Power-shift tractor - MGX-IV - Fiche test AG 2 - 4-cylinder / 4 wheel drive / 3-point hitch - image - 6
Add to favorites
Compare this product

Characteristics

Transmission
power-shift
Number of cylinders
4-cylinder
Other characteristic
4 wheel drive, 3-point hitch, front PTO, with front-loader
Engine power

104 ch, 111 ch, 123 ch, 133 ch, 143 ch
(104 hp, 111 hp, 123 hp, 133 hp, 143 hp)

Displacement

3,769 cm³
(127 US fl oz)

Wheelbase

2,440 mm, 2,540 mm, 2,680 mm, 2,685 mm
(96.1 in, 100 in, 105.5 in, 105.7 in)

PTO speed

1,000 rpm
(6,283.2 rad.min-1)

Torque

346 Nm, 379 Nm, 503 Nm, 544 Nm, 566 Nm
(255 ft.lb, 280 ft.lb, 371 ft.lb, 401 ft.lb, 417 ft.lb)

Maximum speed

40 km/h
(24.9 mph)

Fuel tank capacity

190 l
(50.2 gal)

Total length

4,315 mm, 4,475 mm
(169.9 in, 176.2 in)

Total height

2,830 mm, 2,880 mm
(111.4 in, 113.4 in)

Weight

4,300 kg, 4,560 kg, 4,845 kg, 5,065 kg
(9,479.9 lb, 10,053.1 lb, 10,681.4 lb, 11,166.4 lb)

Description

THE CLEVER ALL-ROUNDER The Kubota MGX-IV is the all-rounder among professional tractors. Its versatility ensures continuous productivity. Extremely powerful The strong 4-cylinder engines provide low fuel consumption. Effortless shifting The 8-speed powershift transmission ensures smooth and comfortable gear shifts. Exceptionally comfortable The very spacious cab provides an efficient and comfortable workplace. Extremely robust The powerful 3-point powerlift provides a lifting capacity of up to 6,100 kg. Simple lifting The tractor/front loader combination delivers high levels of performance in all situations.
