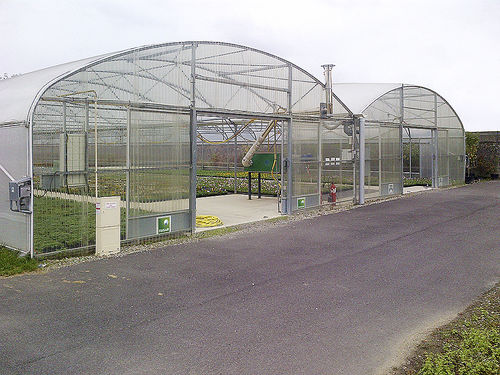

Tunnel type greenhouse VERTICLAIR
commercial productionplasticsteel frame

tunnel type greenhouse
tunnel type greenhouse
tunnel type greenhouse
Add to favorites
Compare this product


Characteristics

Form
tunnel type
Type
commercial production
Material
plastic, steel frame
Other characteristic
with side ventilation
Width

8 m, 9.6 m, 16 m, 19.2 m
(26'02" , 31'05" , 52'05" , 62'11" )

Height

2.6 m, 3.8 m, 3.99 m
(8'06" , 12'05" , 13'01" )

Description

Verticlair® combines the tunnel’s simplicity of construction with a vertical post: optimum volume, ventilation and light are thus guaranteed. The arched poles, arches and braces are made of perfectly balanced round tubes (15/10 and 20/10 60 mm and 32 mm dia.) to provide optimum strength. They are made from only the finest galvanized steels (European standard EN-10147). Verticlair® has basic construction components: • Assembly with Filclair connecting crosses • Patented telescopic legs • Exclusive arched poles • 75 mm x 45 mm pole (twin-tunnel) • Aluminum clips Verticlair®, with its exceptional performance, and its easy mounting and maintenance capabilities is now a reference in the field. Luminous solutions Each Verticlair® structure meets the ”snow and wind” stability requirements of your planting site. Whatever the density of the structure’s latticework, Verticlair® is a homogeneous and coherent assembly, designed and manufactured according to particular specifications. Compliant with the most stringent standards (EN NF 13031-1), the CAD software performs the integral calculus on the structures in order to optimize each component. • The continuous side ventilation is available with gravity based or winding systems. • The CSV are installed with wind-breaker nets and an ALUCLAIR™ multi-clip Tube. • They are controlled using a direct handle or by a universal control. These controls may be manual as well as motorized.
