Robotized lawn mower RM21

electricfor sloped terrain

Overview

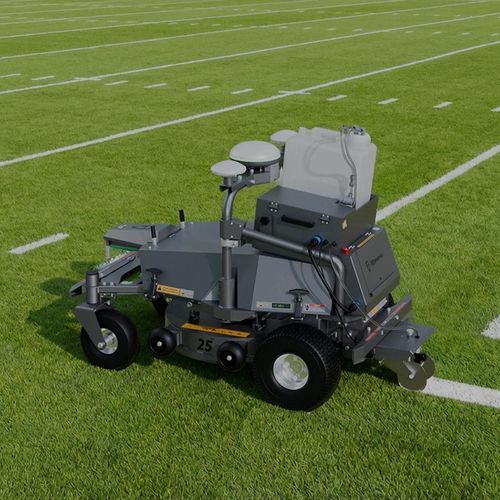

The RM21 robotic mower is an autonomous turf maintenance platform designed for large multi-zone areas such as sports fields, golf courses, turf farms and orchards. It provides consistent, precise cuts and advanced autonomous functions including site mapping, multi-zone scheduling and remote monitoring to optimize mowing operations and reduce manual work.

Key Features

• Intelligent path planning: automatically calculates optimal routes within defined work areas for consistent coverage.
• Multi-zone management: schedule and run tasks across multiple zones for large sites.
• Remote app monitoring: create maps, manage schedules and monitor status from a smartphone.
• RTK + LiDAR fusion: reliable positioning and navigation under trees and in challenging signal environments.
• Multi-layer safety: 360° LiDAR obstacle detection plus front and rear bumpers for safe autonomous operation.
• Smart docking & charging: automatic return-to-charge when battery level is low.
• Modular task kits: optional kits for ball collection, line marking, grass collection and dew brushing.

Applications & Use Cases

• Sports fields (soccer, football, rugby) — consistent mowing with reduced labor requirements.
• Golf courses — maintenance for greens, fairways and driving ranges with multi-zone scheduling.
• Orchards and turf farms — autonomous mowing across large continuous areas.
• Stadiums and municipal turf — time-constrained maintenance including line marking and debris collection.

Accessories & Modular Kits

• BP01 Ball Picker Kit
• LM01 Line Marker Kit
• GC01 Grass Collector Kit
• DB01 Dew Brush Kit

Product Showcase / Media
Case study videos and user testimonials demonstrate RM21 operation on golf courses, driving ranges and sports venues, showing autonomous mowing, ball collection and line marking workflows.

Technical specifications

• Mowing capacity (72-hour max, fast charging mode): 108,000 m² (26.7 acres)
• Mowing capacity (72-hour max, standard charging mode): 93,600 m² (23.1 acres)
• Max mowing area per charge: 12,000 m² (3 acres)
• Max climbing ability: 20°
• Recommended working slope: 15°
• Travel speed: 0–6 km/h (0–3.7 mph)
• Weight: 170 kg / 375 lb
• Dimensions (L×W×H): 1330 × 853 × 980 mm (52.4 × 33.6 × 38.6 in)
• IP rating: IPX4
• Operating temperature: 0–45 ℃
• Cutting height: 20–127 mm (0.8–5 in)
• Cutting width: 635 mm / 25 in
• Battery capacity: 4 kWh
• Max working time: 5 h
• Charging time (standard): 5 h
• Charging time (fast charging): 3 h
• Battery rated voltage: 48 V DC
• Factory configuration: flat blade (standard; optional markers indicated on product page)
