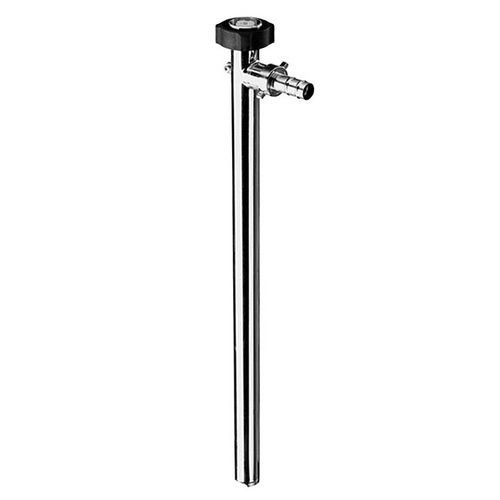

Fuel pump F 430/FP 430

submersiblevertical

The universal Drum pump with mechanical seal F/FP 430 can be used for various media and is suitable for conveying out of drums, IBCs or tanks. Due to the construction with mechanical seal, the pump can be easily and quickly taken apart into its two main components. This allows good cleanability. Distinct feature, only at FLUX: The inner tube is reinforced with a metal core on plastic models (PP and PVDF). This always allows full function of the mechanical seal. This way, leakage and unnecessary wear are prevented for the complete operating temperature range. Furthermore, it provides highest stability and makes immersion lengths of up to 3 000 mm possible. The versions in stainless steel and hastelloy C are ex-protected. The stainless steel version is also available as FOOD certified version. Technical data: -Delivery head: max. 30 mwc2 -Viscosity: min. 1 mPas - max. 1200 mPas2 -Outer tube diameter: min. 40 mm - max. 50 mm3 -Immersion length: 700, 1000, 1200 -Materials outer tube: Aluminium, hastelloy C, Polypropylene, Polyvinylidene fluoride, Stainless steel -Media / Fluids: Acids, Alkalis, Aqueous salt solutions, Fuels, Highly flammable media, Petroleum products, Solvents -Seal: with mechanical seal -Container: 1000 l IBC, 200 l drums, Tanks > 1000 liters Product attributes -With mechanical seal for sealing the inner tube -Pump can be disassembled into two parts: inner tube cpl. and outer tube -Inner tube with metal core on PP and PVDF -Versions for use in hazardous areas available -FOOD version available -Grease-lubricated shaft bearing -Can be combined with various motors as required
