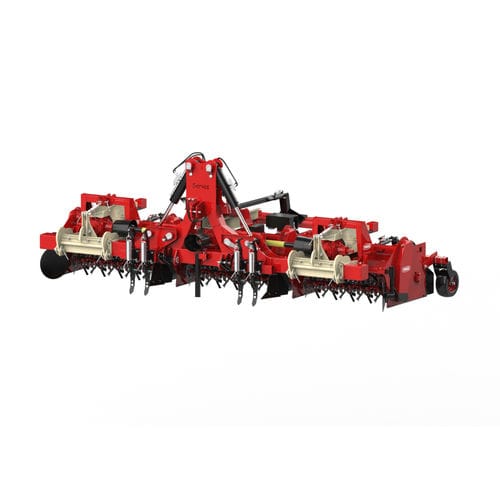

Bed former TD45 series

Basic machine HEADSTOCK EQUIPMENT: Universal 3-point linkage Cat. 2 & 3 Swinging arms tractor coupling Single speed gearbox 1000 rpm PTO Central standard cardan shaft (1”3/8 Z=6 tractor side yoke) Cardan shafts with automatic cam clutch SC type for lateral units Cardan shaft with automatic cam clutch SC type for central unit Pair of front lateral discs adjustable in width and height Ø460 mm Pair of furrow ploughshares, adjustable in width and height Swinging and side adjustable machines supports Joints and couplings for machines' connection Pair of supporting rear wheels for central unit Hydraulic system for opening and folding by 2 rams Hydraulic locking system for transport position 255 cm wide during transport Rear lights bar N.3 INDIPENDENT BED FORMERS D45 WHICH CAN BE INDIVIDUALLY RAN AS A SINGLE BED UNIT MACHINE EQUIPMENT: Universal 3-point linkage Cat. 2 Single speed gearbox 540 rpm PTO Rear PTO connection Front tilling rotor Ø490 mm Tilling rotor drive chain in oil bath Rear crumbling rotor Ø360 mm with high resistance and wearing steel tines Rear rotor drive chain in oil bath Front dual metal face seals in oil bath on rotors Removable flanged rotors Automatic spring-loaded chain tensioner 4x blades per flange, length 300 mm Rear adjustable hood Pair of wearing round rods on side panels
