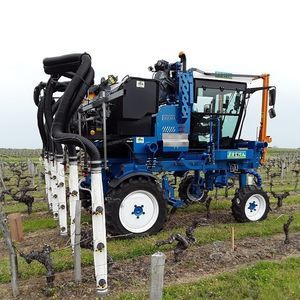

Straddle farm tractor Lydia 100

hydrostaticvineyardcompact

The side cab of the Lydia 100 offers an ideal and global visibility for the soil work. This compact model favours handling and avoids soil compaction. It is suitable for both soil work (push or pull tool holders between the wheels) and spraying equipment. TECHNICAL DESCRIPTION Engine - Engine Kohler 120CV KDI3404TCR Stage V Hydrostatic transmission - 2 or 4 wheel –drive with integrated anti-slipping system Variable flow pump Electronic speed limiter Hydraulic circuit - Variable speed PTO Variable flow PTO : 110l/mn max Secondary PTO : regulated flow at 40l/mn Fast connections of front and rear tools with regulated flow 6 single and 5 double acting spool valves on the control lever Miscellaneous - Track width & Height : To be defined according to availability Load sensing hydraulic steering 100 liters oil tank 95 liters fuel tank Manual and automatic front hydraulic lifter Pneumatics - Front : 320/65 R18 Rear : 360/70 R28 Wide pneumatics as an option Driving station - Side driving position on absorbers Hand and foot throttle Adjustable steering column 2 side rear-view mirrors Multi-disk parking brake Reverse camera and buzzer Working lights and flashing light Spraying equipment - Option: 800 liters tank with holder Attachment frame for tanks on the platform Options - Air conditioned and pressurised cab, Class 4 High confort seat Electric rear view mirors , defrost function 2 push or pull tool holders between the wheels 2 pull tool holders marks eradicator Electronic speed controller PTO engine (16 HP at 540 RPM or 35 HP at 540 rpm or 35 HP at 3600 RPM) Fastening frame for tools on a platform Rear wide pneumatics : 420/65 R28 or 320/85R28
