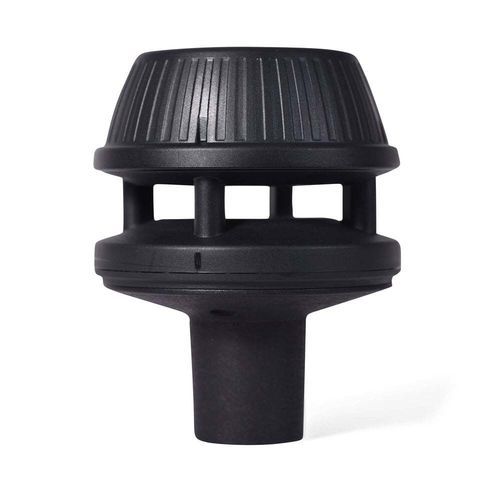

Ultrasonic anemometer FT6connected
Add to favorites
Compare this product
Characteristics
- Technology
- ultrasonic, connected
Description
Overview
Benefits
Features
Accessories (examples)
Certifications & Environmental Tests
EMC Standards
Caractéristiques / spécifications techniques
- Compact industrial ultrasonic anemometers weighing 170g, designed for demanding applications where precise performance and reduced weight are required.
- Equipped with Acu-Res® acoustic resonance technology as standard, providing a stronger ultrasonic signal and resistance to shock, vibration and interference.
- Reads wind speed up to 75 m/s and wind angle; also measures temperature, pressure, compass, tilt and acceleration. Offers multiple communication methods and a simple 3-screw mounting method for easy integration into safety, control or monitoring systems.
Benefits
- FAST UPDATE RATE: 10 Hz output rate for real-time tuning of navigation and control systems.
- HIGH ACCURACY: Each sensor individually calibrated in FT’s wind tunnels for high accuracy in wind speed and angle.
- RELIABLE PERFORMANCE: Acu-Res® delivers a signal ~40 dB stronger than other ultrasonics, making readings robust to shock, vibration and interference.
Features
- WIND SPEED: 0–75 m/s (146 knots).
- WIND ANGLE: 0–360°.
- TEMPERATURE: -20 to +60 °C.
- PRESSURE: 540 to 1200 hPa.
- TILT: -40 to +40°.
- COMPASS: prevailing wind direction 5° RMS.
- LOW POWER: 5–24 VDC (5 V USB compatible).
- UV-stabilised polycarbonate blend housing.
- Powered by Acu-Res® Technology — signal ~40 dB stronger; software automatically compensates for temperature, pressure and humidity changes.
- No moving parts — maintenance-free; compact and mechanically strong.
- Fully-sealed IP66 and IP67 sensor and connector.
- Shock-resistant; immune to vibration, electromagnetic interference and solar radiation.
- DATA I/O INTERFACES: RS422, RS485, UART, CANbus.
- DATA FORMATS: ASCII, NMEA 0183, NMEA2000.
- Operates up to 4000 m altitude.
- No exposed parts — resistant to bird attack.
- Low power usage even when heated.
- Wind speed output selectable in m/s, km/h or knots.
- Individually calibrated in FT wind tunnel; calibration results traceable by serial number (report available on request).
Accessories (examples)
- FT016 FT602-SM Cable 1.5m - 12 core
- FT017 FT602-SM free end connector - 12 way
- FT018 FT602-SM Cable 35m - 4 core (RS422)
- FT063 Acu-Test Pack for FT602 sensor (RS485)
- FT064 Acu-Test Pack for FT602 sensor (RS422)
- FT065 Acu-Test Pack for FT602 sensor (UART)
- FT091 Pipe Mount Adaptor for FT602 (25mm OD)
- FT092 Pipe Mount Adaptor for FT602 (22mm OD)
- FT093 430mm Mounting kit for FT602 (22mm OD)
- Analogue/digital cables and accessory bundles referenced for FT602 (e.g. FT001, FT004, FT005, FT007, FT008)
Certifications & Environmental Tests
- EN 60068-2-1: Cold
- EN 60068-2-2: Dry Heat
- EN 60068-2-14: Temperature Cycling
- EN 60068-2-30: Cyclic Humidity
- EN 60068-2-78: Stationary Humidity
- EN 60068-2-38: Combined Temperature & Humidity
- EN 60068-2-6: Sinusoidal Vibration
- EN 60068-2-64: Random Vibration
- EN 60068-2-27: Mechanical Shock
- EN 60529: IP 6X Dust
- EN 60529: IP X7 Immersion
- DEF STAN 00-35 Issue 4: Wind Blown Dust & Wind Blown Sand Tests
- ISO 9227 & IEC12944: Corrosion
- EN 60068-2-5: Solar Radiation
- EN 60068-2-13: Altitude
- EN 60068-2-31: Drop
- EN 61215: Hail
- DEF STAN 00-35: Fog, Rain
- MIL-STD-810G: Icing
EMC Standards
- EN 61000-6-3: Emission standard for residential, commercial and light-industrial environments
- EN 61000-6-2: Immunity for Industrial Environments
- EN 61000-4-2: Electrostatic discharge immunity
- EN 61000-4-3: Radiated RF field immunity
- EN 61000-4-4: Electrical fast transient/burst immunity
- EN 61000-4-5: Surge immunity
- EN 61000-4-6: Immunity to conducted disturbances induced by RF fields
- EN 61000-4-8: Power frequency magnetic field immunity
- EN 61000-4-9: Pulse magnetic field immunity
Caractéristiques / spécifications techniques
- Weight: 170 g
- Shock resistance: 50 g
- Ingress protection: IP66 and IP67 (sensor and connector)
- Wind speed:
Range: 0–75 m/s | 0–270 km/h | 0–145.8 knots
Resolution: 0.1 m/s | 0.1 km/h | 0.1 knots
Accuracy: ±0.3 m/s (0–16 m/s); ±2% (16–40 m/s); ±4% (40–75 m/s) - Wind direction:
Range: 0–360°
Resolution: 1°
Accuracy: 4° RMS
Compass accuracy: 5° RMS - Temperature: -20 to +60 °C
- Pressure: 540 to 1200 hPa
- Tilt: -40 to +40°
- Operating altitude: up to 4000 m
- Power: 5–24 VDC (5 V USB compatible); low power consumption even when heated
- Materials: UV-stabilised polycarbonate blend
- Interfaces: RS422, RS485, UART, CANbus
- Output formats: ASCII, NMEA 0183, NMEA2000
- Maintenance: No moving parts, maintenance-free; individually calibrated with traceable serial-numbered calibration reports
