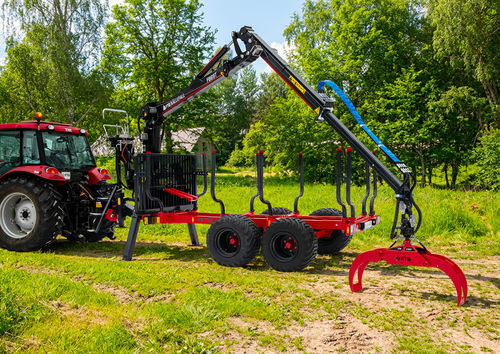

Self-propelled trailer FB70D

tandem axleforestry7 ton

Overview FB70D trailer features a double‑beam frame, bogie axle and stable protective gates. It has a straight drawbar with a rotating towing eye Ø50 mm and drawbar steering with one hydraulic cylinder. Telescopic A‑type support legs with block valves ensure stable balance. The frame is extendable and integrates LED rear lights. Anchor points for tension belts, two stake holders at the rear for cross loading, and a standard arrangement of 4 pairs of bunks (8 stakes) are fitted. Standard wheels are 400/60‑15.5 with a grooved profile and valve protection. The trailer offers a loading capacity of 7,000 kg, a permissible total weight of 9,000 kg and a loading area of 1.9 m². FB70 is a compact forestry trailer compatible with crane reaches from 5.1 m to 6.9 m. The drawbar can be straight or fitted upwards; hydraulic drawbar steering improves maneuverability and the bogie swing axle design provides long service life.

Highlights

• Forestry trailer with max. permitted total weight 9,000 kg
• Compatible with cranes up to 6.9 m reach
• Maximum loading length 4.4 m (extendable)

Cranes for trailer FB70D
Crane FB51L
Crane FB53T
Crane FB63T
Crane FB63TS
Crane FB69T

Standard equipment (key items)

• Drawbar: straight
• Drawbar steering: 1 hydraulic cylinder
• Rotating towing eye: Ø50 mm
• Hydraulic support legs: A‑type telescopic with block valves
• Frame extension with integrated LED rear lights
• Sling loops / anchor points for tensioning belt
• Stake fixation to prevent fall‑out
• Stake holder for 1 m wood transport
• Pairs of bunks / stakes: 4 pairs / 8 stakes (standard)
• Wheels: 400/60‑15.5 AW (valve protected)

Options / Accessories (selected)

• Alternative wheels: 400/60‑15.5 SG (traction profile), 480/45‑17 SG, 500/50‑17 SG
• Independent hydraulic system: pump with quick coupling for PTO (female) or pump with shaft for installation on the drawbar (male)
• Brake options: 2‑wheel hydraulic, 4‑wheel hydraulic, 2‑wheel pneumatic, 4‑wheel pneumatic, 2‑wheel overrun brakes
• Drawbar variants: upwards / downwards
• Fixed towing eye Ø40 mm with flange fixing
• Registration plate light protection bar, additional pair of stakes, stake extension, connection of first pair of stakes to the gates
• Plywood floor lining, toolbox with cover, parking leg (height‑adjustable available)
• Protective shoe‑plate for telescopic support legs, operator’s platform with ladder or seat, fuel tank holder with tank, grapple holder
• 2WD hydraulic wheel hub drive (Black Bruin B240 hub motors) and own oil supply
• Insert plates for brushwood transportation

Technical specifications

• Max. permitted total weight: 9,000 kg (*depending on brake system)
• Load capacity: 7,000 kg
• Weight (standard equipment): 1,870 kg
• Load area: 1.9 m²
• Load length: 4.4 m (extendable with frame extension)
• Double‑beam frame: 140 x 70 mm
• Drawbar: straight (option for upwards / downwards)
• Drawbar steering: 1 hydraulic cylinder
• Rotating towing eye: Ø50 mm
• Hydraulic support legs: A‑type telescopic with block valves
• Frame extension: integrated LED rear lights
• Sling loops / anchor points for tensioning belt
• Stake fixation from fall‑out
• Stake holder for 1 m wood
• Pairs of bunks / stakes: 4 pairs / 8 stakes (standard)
• Wheels (standard): 400/60‑15.5 AW (traction/traction‑profile options available)
• Crane reach compatibility: cranes with reach up to 6.9 m
